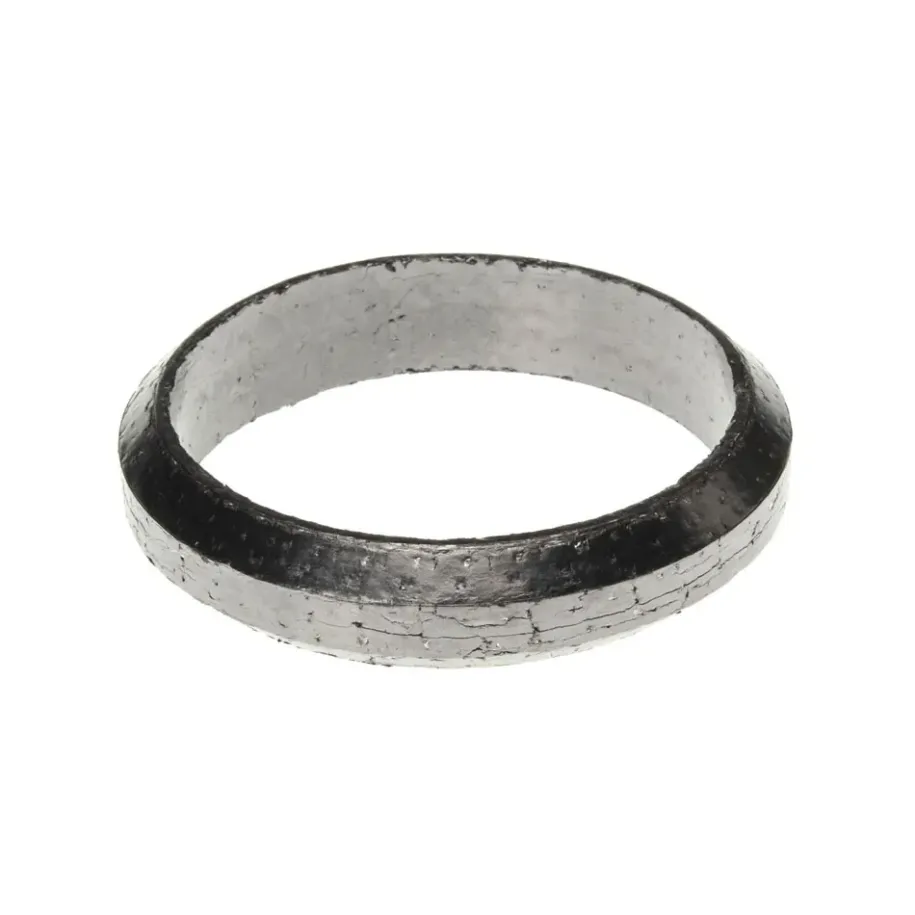

MAHLE F7139

Exhaust pipe flange gasket (exhaust donut) for GM V8 – Chevrolet small block and big block engines, 1957–2002. Type C ring (donut), graphite with wire mesh – seals the exhaust manifold to a 2.5" pipe or crossover pipe.

• Materialgraphite with wire mesh
• Inside diameter2.53" (64.3 mm)
• Outside diameter3.01" (76.5 mm)
• Height0.61" (15.5 mm)

Fits

• Chevrolet – 200 (3.3 L) V6: 1978–79 · 283 (4.6 L) V8: 1957–67 · 305 (5.0 L) V8: 1976–82, 1985 · 307 (5.0 L) V8: 1968–73 · 327 (5.4 L) V8: 1962–69 · 348 (5.7 L) V8: 1958–61 · 350 (5.7 L) V8: 1968–82, 2002 · 365 (6.0 L) V8: 1983–90 · 366 (6.0 L) V8: 1980–90 · 396 (6.5 L) V8: 1965–70 · 400 (6.6 L) V8: 1972 · 402 (6.6 L) V8: 1970–72 · 409 (6.7 L) V8: 1961–65 · 427 (7.0 L) V8: 1966–69, 1980–90 · 454 (7.4 L) V8: 1970–82
• GMC – 5.7 L V8: 2001–02 · 305 (5.0 L) V8: 1968–73, 1976–82 · 307 (5.0 L) V8: 1968–73 · 350 (5.7 L) V8: 1969–82 · 365 (6.0 L) V8: 1983–90 · 366 (6.0 L) V8: 1980–90 · 396 (6.5 L) V8: 1968–69 · 402 (6.6 L) V8: 1970–72 · 427 (7.0 L) V8: 1980–90 · 454 (7.4 L) V8: 1970–82
• Pontiac – 283 (4.6 L) V8: 1957–67 · 305 (5.0 L) V8: 1971 · 307 (5.0 L) V8: 1971–72 · 327 (5.4 L) V8: 1962–69 · 348 (5.7 L) V8: 1958–61 · 396 (6.5 L) V8: 1965–69 · 409 (6.7 L) V8: 1961–65 · 427 (7.0 L) V8: 1968–69
• ISO – 327 (5.4 L) V8: 1963–74 · 427 (7.0 L) V8: 1969–74
• Checker – 283 (4.6 L) V8: 1965–67 · 307 (5.0 L) V8: 1968 · 327 (5.4 L) V8: 1968–69
• Excalibur – 327 (5.4 L) V8: 1965–69
• Gordon-Keeble – 327 (5.4 L) V8: 1964–67
• Oldsmobile – 350 (5.7 L) V8: 1974

Interchange numbers

Other brands: Fel-Pro 60584 · Fel-Pro 9587 · ROL EG24057 · International Harvester EN1493

OE numbers: GM 3767556 · GM 3768711 · GM 6271612

Manufacturer part number: MAHLE F7139
