FEL-PRO OS34509T

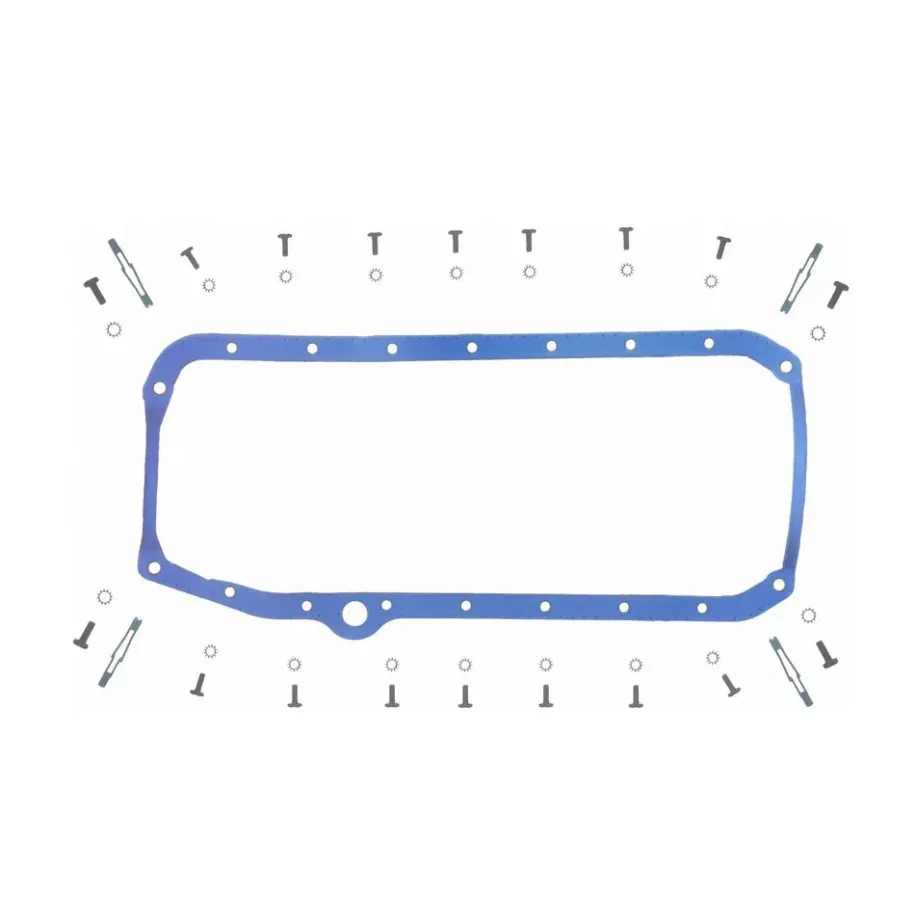

Fel-Pro OS34509T is a one-piece oil pan gasket for early Chevrolet Gen I V8 engines with a two-piece rear main seal. The critical installation dimension is the 2-1/4" / 57.15 mm thin front oil pan seal.

Application / fitment

The gasket is intended for selected Chevrolet Gen I V8 engines, most often 1955-1974 applications, using the thin front oil pan seal and two-piece rear main seal. In swapped cars, the engine pan and timing cover matter more than the body year.

• part type: oil pan gasket
• position: oil pan to engine block
• selected applications: Chevrolet V8 4.3 / 262, 4.3 / 265, 4.4 / 267, 4.6 / 283, 4.9 / 302, 5.0 / 305, 5.0 / 307, 5.4 / 327, 5.7 / 350, 6.6 / 400
• dimensions: front dimension A 2-1/4" / 57.15 mm, thin front seal 1/4" / 6.35 mm; thick version uses 2-3/8" / 60.33 mm and 3/8" / 9.53 mm

Lay a straightedge across the front pan rails and measure down to the lowest point of the front seal area. If the measurement is 2-1/4" / 57.15 mm, this thin seal version is the correct style.

Technical information

• part type: oil pan gasket
• design: one-piece
• material: silicone rubber with plastic core
• rear main seal: for two-piece rear main seal engines
• dipstick side: typically left-hand dipstick early layout, depending on pan
• sale unit: 1 gasket
