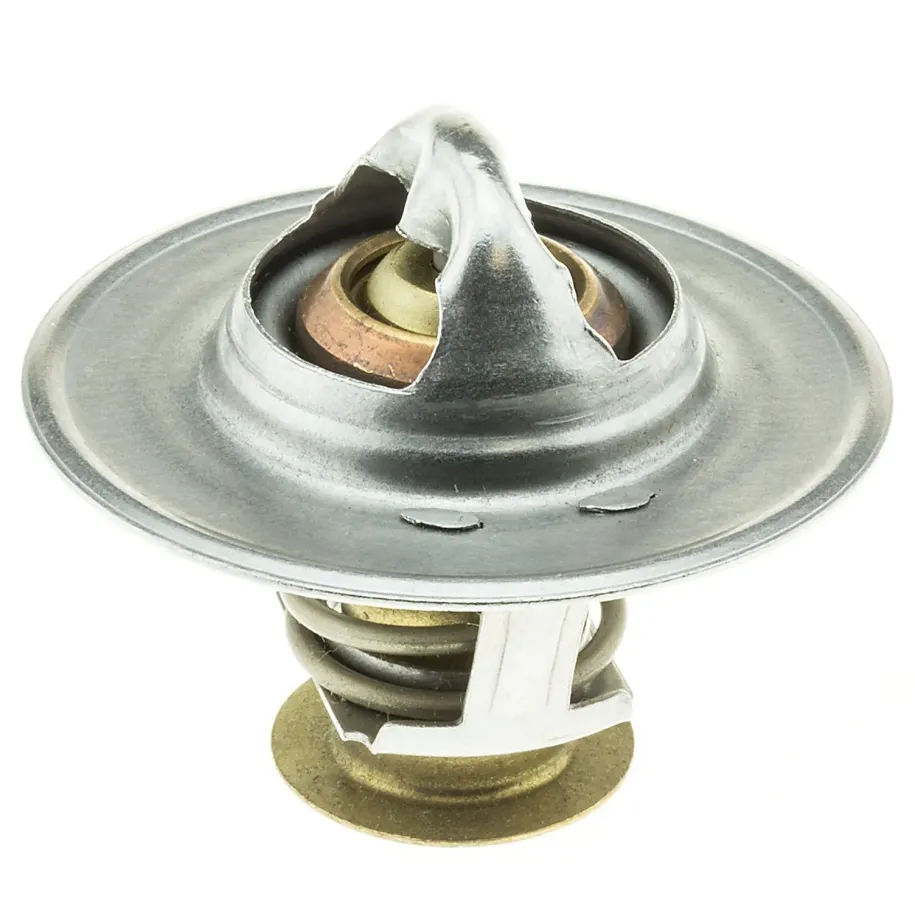

MotoRad 226-195

MotoRad 226-195 is a standard engine-coolant thermostat beginning to open at 195°F / 90.56°C. It includes a lower bypass flange for cooling systems requiring bypass-style thermostat construction.

Application / fitment

The thermostat is catalogued primarily for selected classic Cadillac and certain heavy-duty vehicles. Correct fitment depends on main flange diameter, lower bypass dimensions and required operating temperature.

• selected Cadillac Calais, DeVille, Fleetwood, Eldorado and Commercial Chassis
• selected Cadillac 368, 425, 472 and 500 CID engines depending on year and housing
• approximate Cadillac range: late 1960s through the mid-1980s
• selected heavy International applications after catalogue verification

Do not substitute a lower-temperature thermostat without considering engine calibration and cooling-system design. Incorrect bypass-flange dimensions can prevent correct coolant circulation.

Technical information

• type: standard mechanical thermostat with bypass flange
• start-to-open temperature: 195°F / 90.56°C
• main sealing-flange diameter: 2.12" / 53.85 mm
• flange thickness: 0.06" / 1.52 mm
• overall height: 1.77" / 44.96 mm
• height between flanges: 1.24" / 31.50 mm
• bypass-flange diameter: 0.93" / 23.62 mm
• bypass-flange length: 1.08" / 27.43 mm
• material: stainless steel and copper
• jiggle pin / bleed hole: no
• gasket: required separately, not included
• sales unit: 1 piece

Install in the correct direction with the gasket required by the housing. Bleed the cooling system and verify operating temperature and sealing.
