180°F / 82.22°C thermostat with 2.12" / 53.85 mm flange, 1.09" / 27.68 mm bypass valve and jiggle pin; gasket not included.
Stant 228-180JV
228-180JV
zł79.00
Tax included
| Delivery within 2-3 business days
180°F / 82.22°C thermostat with 2.12" / 53.85 mm flange, 1.09" / 27.68 mm bypass valve and jiggle pin; gasket not included.

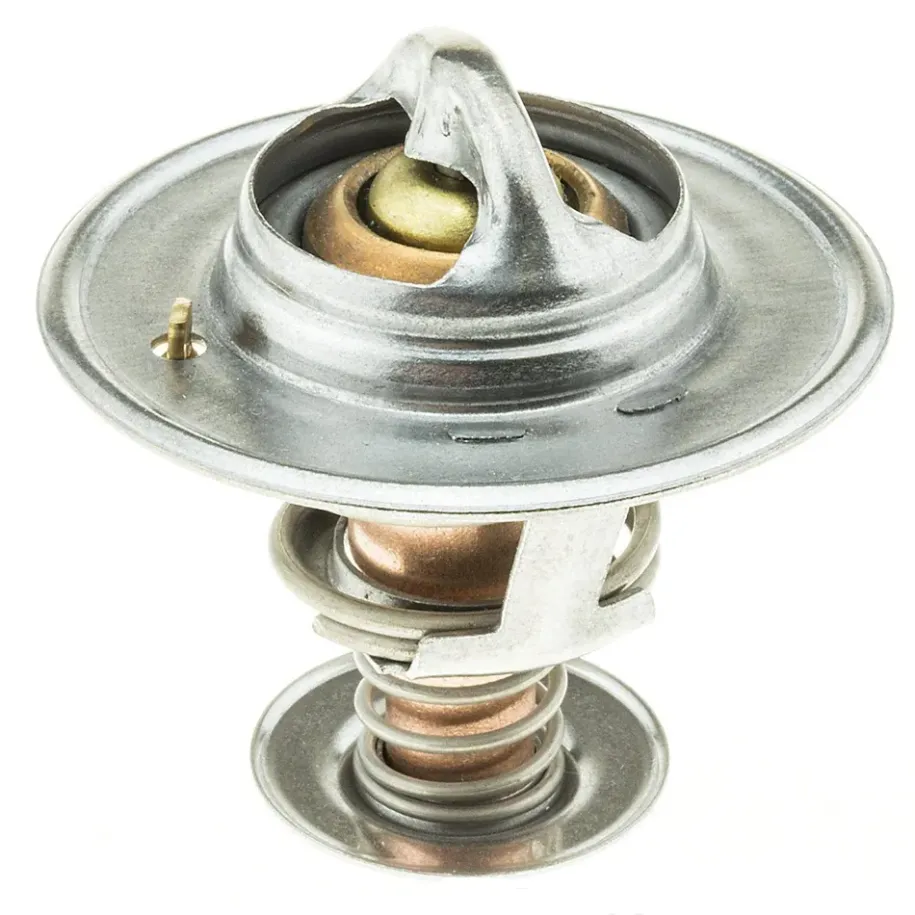

Stant 228-180JV, now cataloged by MotoRad, is a standard 180°F / 82.22°C engine coolant thermostat with a jiggle-pin air bleed and lower bypass valve. The component does not include an integrated seal.
Application / fitment
The thermostat is cataloged for a broad range of selected Ford, Lincoln, and Mercury vehicles, including Crown Victoria, Mustang, F-Series, Expedition, Explorer, E-Series, Grand Marquis, and Town Car. It appears in 4.6-, 5.4-, and 6.2-liter applications, but fitment must be confirmed from dimensions and the required opening temperature.
- start-to-open temperature: 180°F / 82.22°C
- sealing-flange outside diameter: 2.12" / 53.85 mm
- overall height: 2.17" / 55.12 mm
- bypass-valve diameter: 1.09" / 27.68 mm
- outlet inside diameter: 1.04" / 26.42 mm
- air-bleed valve: yes, jiggle pin
Compare temperature, flange diameter, height, and bypass dimensions with the removed thermostat before installation. Order the gasket or O-ring separately and match it to the specific housing.
Technical information
- part type: engine coolant thermostat
- design: standard mechanical OEM style
- materials: stainless steel and copper
- gasket: not included
- OE interchange: GM 19114469
- sale unit: 1 thermostat
