Melling MPC-133B

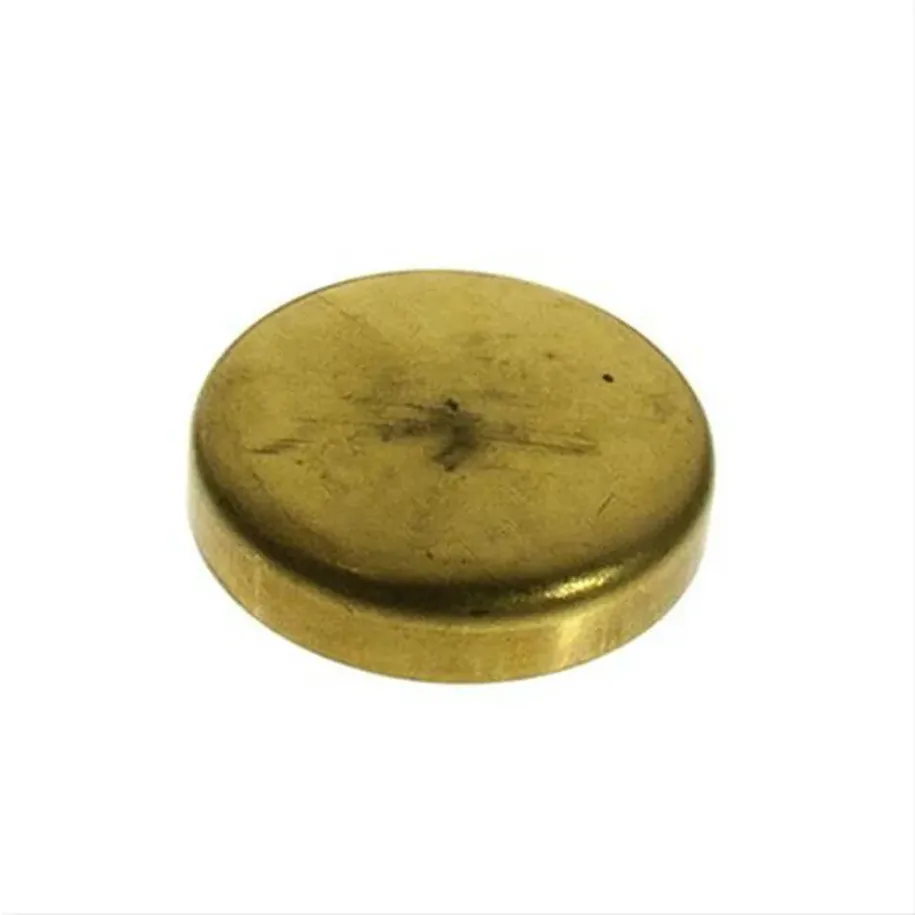

Melling 1 1/2 133B, catalog number MPC-133-B, is a brass deep cup expansion plug / freeze plug used to close casting core holes in an engine. The cup-style plug is installed by press fit, while brass provides strong corrosion resistance in coolant-contact areas.

Application / fitment

This plug is intended for engine block or cylinder-head casting holes where the service specification calls for a 1-1/2" nominal deep cup plug. This size is included in numerous engine plug sets, but the required quantity and installation position depend on the specific engine design. Before installation, compare the cleaned bore diameter, available seating depth, and shape of the removed plug.

• part type: deep cup expansion plug / freeze plug
• position: engine block or cylinder-head casting hole as specified for the particular engine
• nominal size: 1-1/2" / 38.10 mm
• reference dimensions: 1.507" / 38.27 mm catalog O.D. and 0.325" / 8.26 mm depth

The bore must be clean and free from loose corrosion or deep pitting. A thin layer of suitable press-fit sealant may be applied around the plug perimeter. Install the plug squarely with a driver supported at the rim and do not strike the bottom of the cup.

Technical information

• part type: deep cup expansion plug / freeze plug
• material: brass
• attachment method: press fit
• nominal size: 1-1/2" / 38.10 mm
• catalog outside diameter: 1.507" / 38.27 mm
• catalog diameter range: 1.505-1.508" / 38.23-38.30 mm
• depth: 0.325" / 8.26 mm
• Melling catalog number: MPC-133-B; commonly listed as MPC-133B
• UPC: 729295608981
• sale unit: 1 piece
