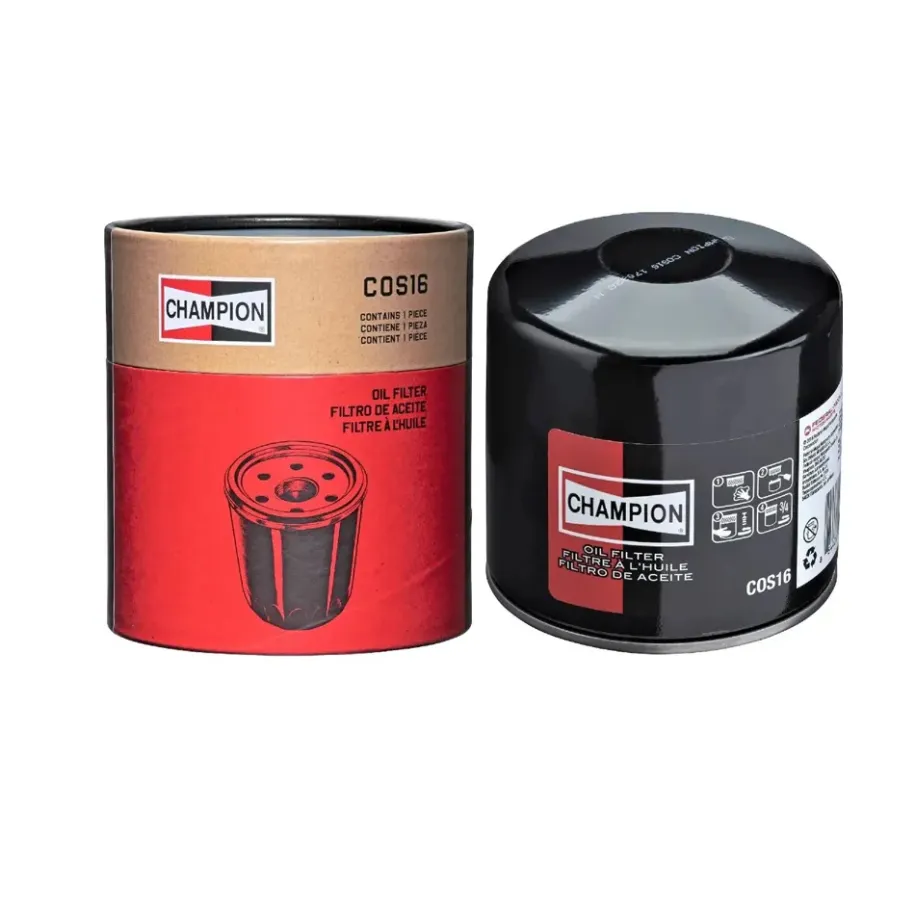

Champion COS16

Champion COS16 is a full-flow spin-on engine oil filter. It belongs to a widely used filter format found in many older American vehicles and selected commercial or industrial applications. The filter uses a 3/4"-16 mounting thread and corresponds to the PH16 replacement family.

Application / fitment

Select the filter by vehicle catalogue, previous part number, thread, gasket diameter, canister height and bypass-valve requirement. A matching thread alone is not sufficient to confirm compatibility.

• selected Chrysler, Dodge, Plymouth and Jeep applications using the PH16/COS16 filter format
• selected Ford and Mercury applications and older listings commonly grouped as Ford/Mopar
• selected Volvo and commercial-vehicle applications using the same mounting arrangement
• selected industrial and machinery applications after verifying flow rate and bypass setting

Representative comparison numbers include FRAM PH16, WIX 51319 and selected ACDelco PF13/PF20 references. Cross-references are guidance only and the complete specification must be checked for the intended application.

Technical information

• part type: full-flow spin-on oil filter
• thread: 3/4"-16
• catalogue height: approximately 4.338" / 110.2 mm
• replacement-family body diameter: approximately 3.66–3.69" / 93–94 mm
• nominal filtration rating: approximately 20–21 microns
• catalogue flow rate: approximately 7–9 GPM / 26.5–34.1 L/min
• anti-drainback valve: yes
• bypass valve: yes; typical catalogue setting 8–11 PSI / approximately 0.55–0.76 bar
• burst pressure listed for the catalogue equivalent: approximately 275 PSI / 19 bar
• UPC: 884429800164
• sales unit: 1 piece

Lightly coat the gasket with clean engine oil and tighten the filter by hand in accordance with the installation instructions. Check oil pressure and inspect for leakage after starting the engine.
