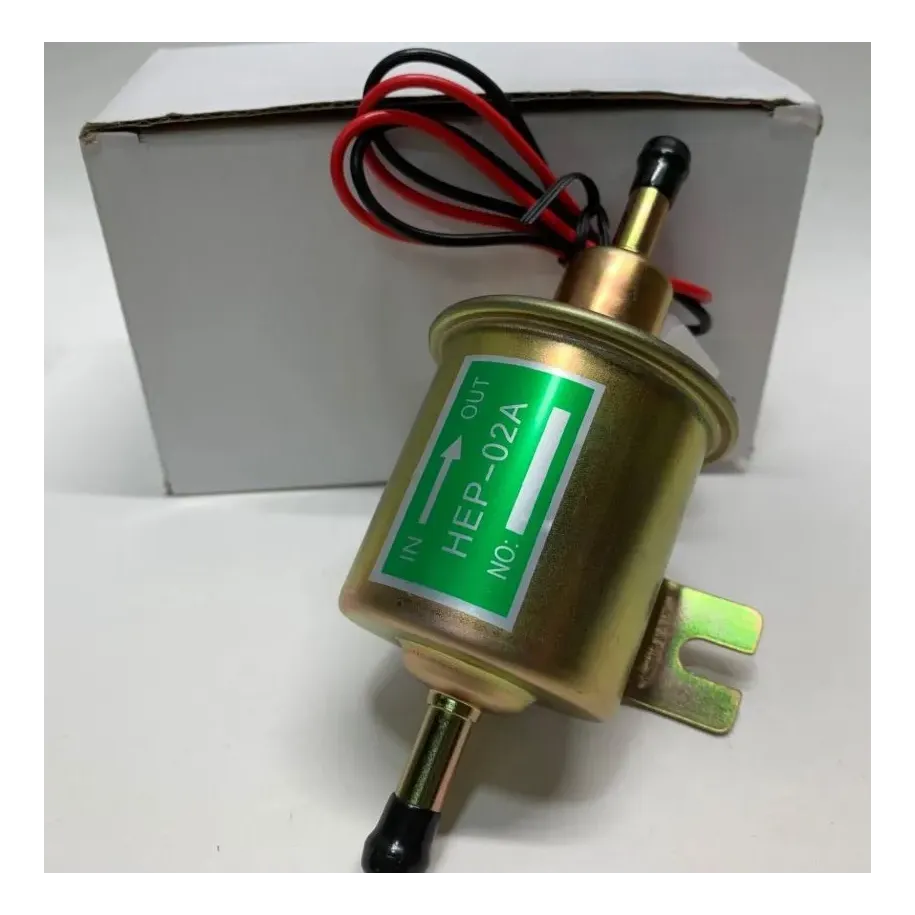

HEP-02A

HEP-02A is a universal 12 V low-pressure electric fuel pump. It is intended primarily for carbureted fuel systems, uses 8 mm hose connections and may operate as a main or auxiliary pump when pressure is correctly matched.

Application / fitment

The pump is universal for 12 V vehicles and equipment using a low-pressure fuel system. Specifications vary among manufacturers selling HEP-02A pumps, so check the label and measure the pressure of the actual unit.

• part type: universal 12 V low-pressure electric fuel pump
• carbureted engines in classic cars, motorcycles, ATVs, lawn equipment and generators
• gasoline or diesel fuel only when approved on the specific pump label
• systems using 8 mm fuel-hose connections
• do not use without a regulator when the carburetor requires lower pressure than the pump supplies
• not for gasoline injection, common rail, water, alcohol or unapproved liquids

Mount the pump close to the tank, at or below fuel level and away from water and exhaust heat. The wiring must include a fuse, relay and safety shutoff that stops the pump when the engine stops. Measure pressure at the carburetor and check for leakage after installation.

Technical information

• part type: universal low-pressure electric fuel pump
• trade model: HEP-02A
• voltage: 12 V DC
• current stated for some versions: 1.2 A
• flow stated for some versions: 70 L/h
• pressure found among HEP-02A versions: 2.5–7 psi / 0.17–0.48 bar
• inlet and outlet connection diameter: 8 mm
• anti-backflow valve: included in some versions
• selected interchanges: E8012S, FD0002, P60430 and EP12S
• sale unit: 1 piece
