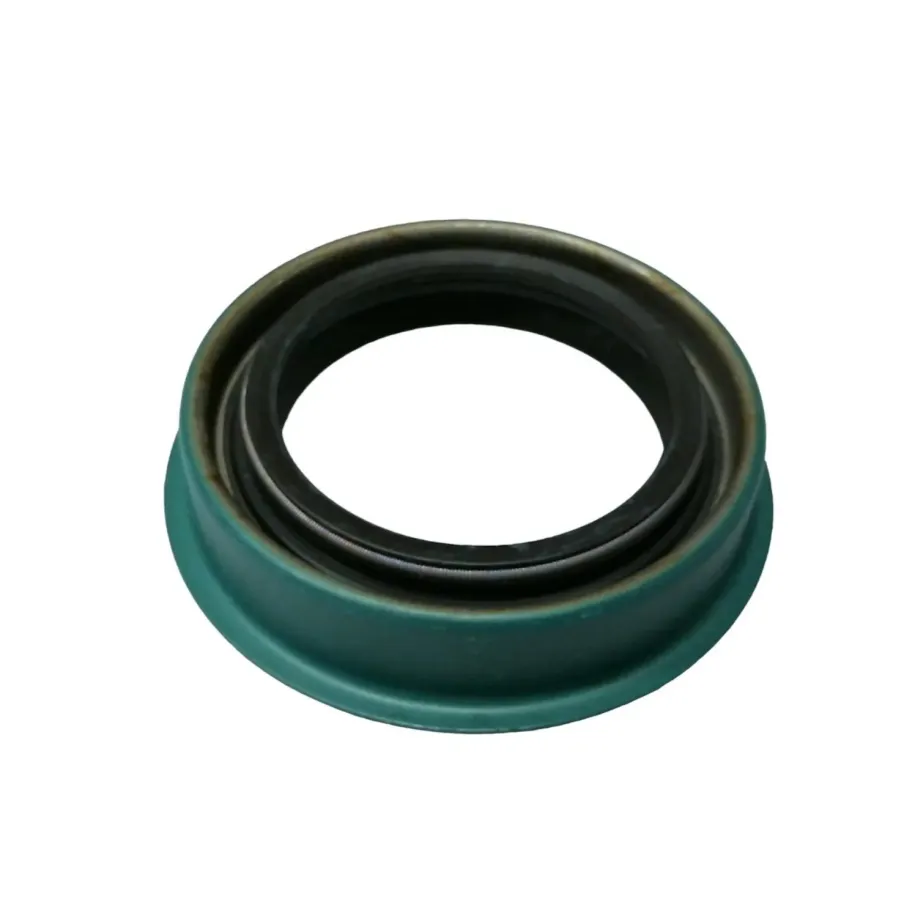

Rear output-shaft seal for selected TH400/4L80/4L85 transmissions using an approximately 47.88 mm yoke surface.
WJB / INMOTION PARTS WS9449
WS9449
zł38.78
Tax included
| Delivery within 2-3 business days
Rear output-shaft seal for selected TH400/4L80/4L85 transmissions using an approximately 47.88 mm yoke surface.
WJB / InMotion Parts WS9449 is a rear output-shaft seal for the GM TH400 and related 4L80/4L85 automatic transmissions. It seals against the slip-yoke surface to retain ATF in the extension housing.
Application / fitment
- GM Turbo-Hydramatic TH400 with 32-spline output
- selected 4L80-E and 4L85-E transmissions using the corresponding housing and yoke
- selected Buick, Cadillac, Chevrolet, GMC, Oldsmobile and Pontiac
- selected passenger-car, pickup and commercial TH400 applications
The seal is designed for a standard yoke sealing surface of approximately 1.885–1.887 inches. Verify yoke and housing dimensions and inspect the extension-housing bushing.
Technical information
- type: output-shaft / extension-housing seal
- sealing material: nitrile / NBR
- shaft/yoke diameter: approximately 1.885" / 47.88 mm
- nominal housing bore: 2.700" / 68.58 mm
- seal outside diameter: 2.706" / 68.73 mm
- width: 0.551" / approximately 14.00 mm
- cross-reference: National/Timken 9449
- sales unit: 1 piece
Inspect the yoke for a wear groove and check bushing play. Lubricate the sealing lip with ATF and press the seal in squarely.
