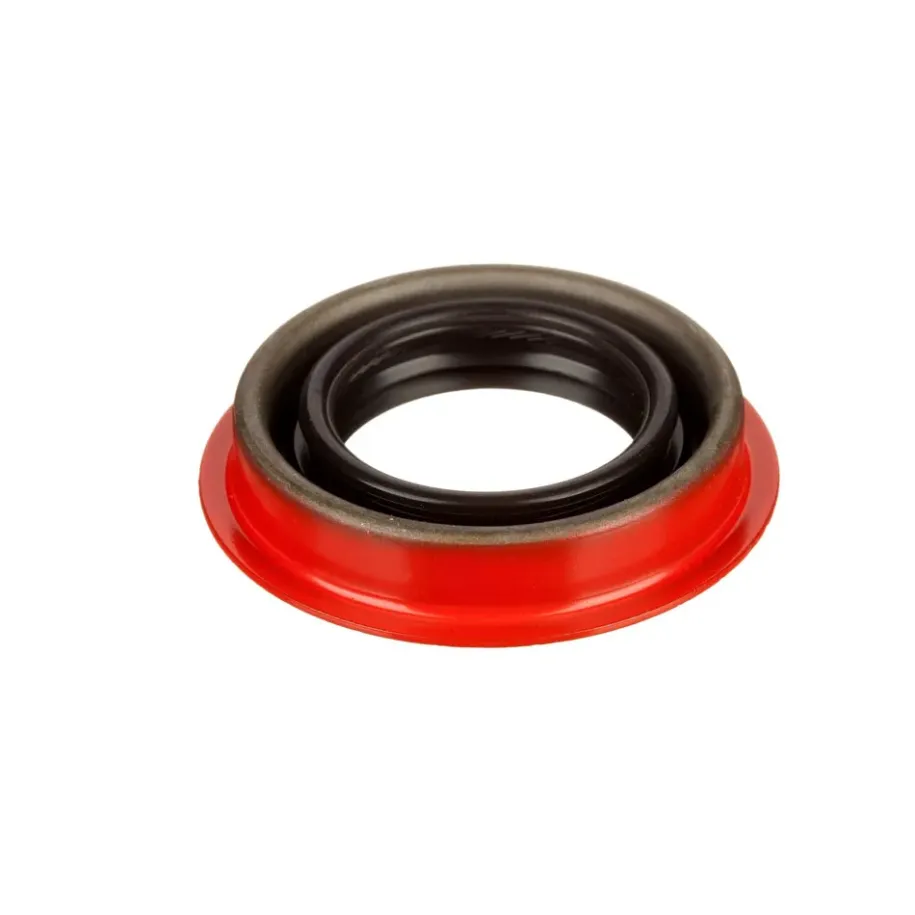

ATP HO-9

ATP HO-9 is an automatic transmission extension housing seal / rear transmission seal. It seals the transmission output area where the output shaft and driveshaft slip yoke pass through the rear extension housing.

Application / fitment

This seal is used in automatic transmission rear housings where the driveshaft slip yoke runs through the rear output seal. Fitment should be checked by seal position, extension-housing type and HO-9 part number; detailed dimensions are grouped in the technical section.

• part type: radial ATF shaft seal / extension housing seal
• position: rear automatic transmission extension housing, slip-yoke and output-shaft area
• selected catalogue applications: Ford F-150 1990-2001; Jeep Grand Cherokee 1993-2004; Jeep Cherokee 1987-2001 with the matching rear transmission housing
• working fluid: ATF at the transmission output area

Before installation, clean the housing bore, inspect the yoke sealing surface and press the seal squarely into the housing without distorting the flange.

Technical information

• type: extension housing seal / rear transmission seal
• dimensions: I.D. 1.75" / 44.45 mm; O.D. 2.6875" / 68.26 mm; width 0.5" / 12.70 mm
• construction: metal shell, rubber sealing lip and garter spring
• fluid: ATF / automatic transmission fluid
• sale unit: 1 piece
