Rear output-shaft seal for selected TH350/Powerglide transmissions using an approximately 38.1 mm shaft.
WJB / INMOTION PARTS WS9613S
WS9613S
zł20.02
Tax included
| Delivery within 2-3 business days
Rear output-shaft seal for selected TH350/Powerglide transmissions using an approximately 38.1 mm shaft.

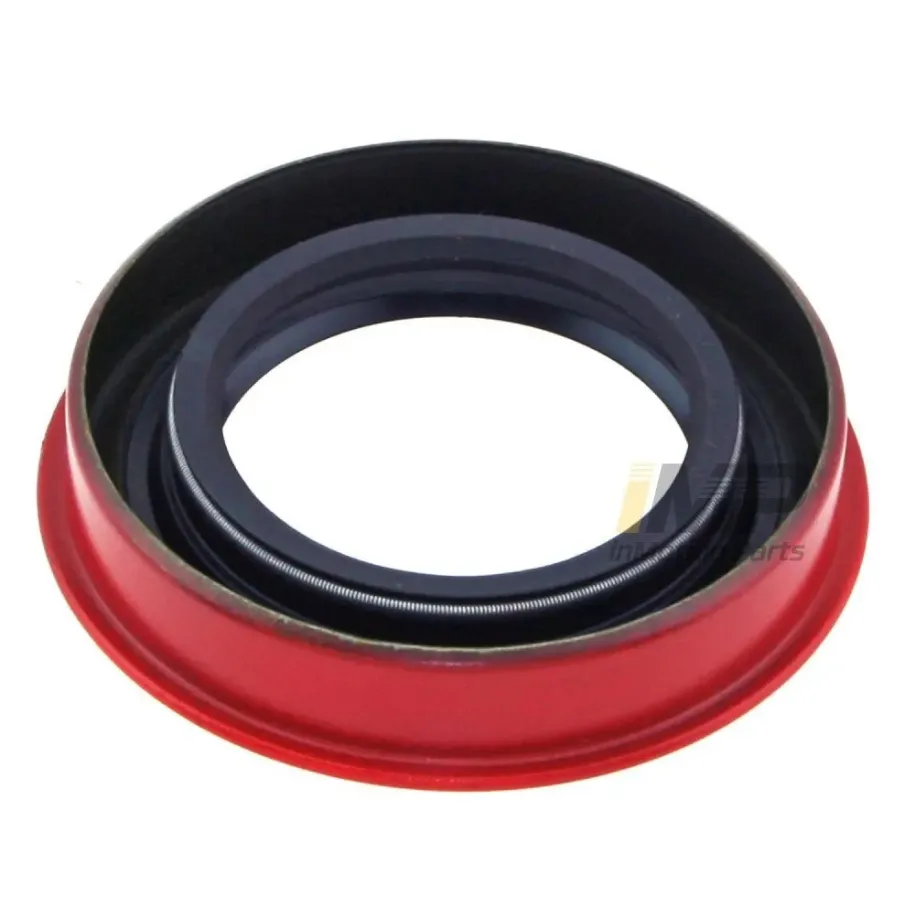

WJB / InMotion Parts WS9613S is a rear output-shaft seal used in selected GM TH350 and Powerglide transmissions. It seals the driveshaft yoke where it enters the transmission extension housing.
Application / fitment
- GM Turbo-Hydramatic TH350
- selected Powerglide transmissions
- selected manual transmissions and other applications using the 9613S dimensions
- selected Chevrolet, GMC, Buick, Oldsmobile, Pontiac and Jeep
Do not confuse it with the larger TH400 seal number 9449. Measure the yoke and housing bore before purchase.
Technical information
- type: output-shaft / tailshaft seal
- sealing material: nitrile / NBR
- shaft diameter: approximately 1.500–1.502" / 38.10–38.15 mm
- nominal housing bore: 2.378" / 60.40 mm
- seal outside diameter: 2.384" / 60.55 mm
- width: 0.469" / approximately 11.91 mm
- flanged outside diameter: approximately 2.550" / 64.77 mm on flanged versions
- cross-reference: National/Timken 9613S
- sales unit: 1 piece
Inspect the yoke surface, housing bushing and transmission vent. Lubricate the lip with ATF before installing the yoke.
