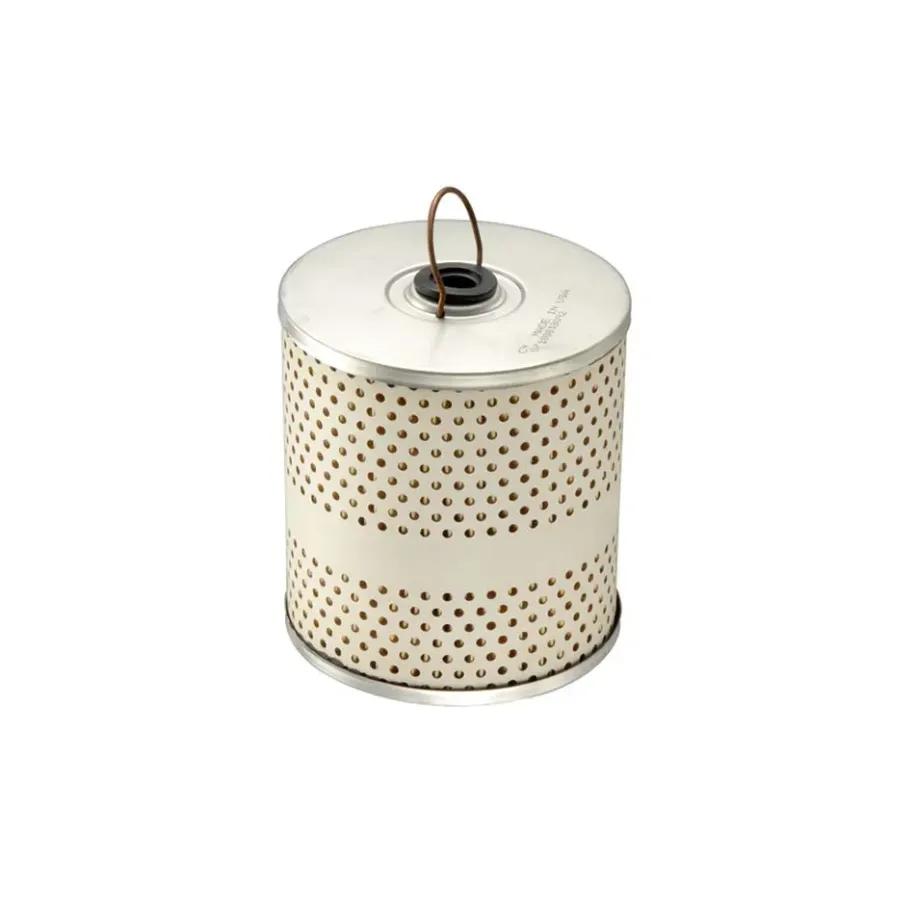

Fram C4

FRAM C4 is a cartridge bypass oil filter element for classic serviceable metal filter housings. It is used in systems where the filter is installed inside a removable canister and receives bypass oil flow.

Application / fitment

The filter appears in selected classic vehicles and equipment using a C4-type housing. Confirm outside diameter, height, center-hole diameter and the number on the removed element.

• part type: cartridge bypass oil filter
• selected classic Cadillac and Chevrolet applications
• selected Studebaker vehicles using a serviceable oil-filter canister
• selected Continental, Hercules, Clark, Ford and International Harvester industrial engines and equipment
• other applications requiring FRAM C4 or a confirmed equivalent
• dimensions: 4.875 in / 123.83 mm height; 4.203 in / 106.76 mm outside diameter; 0.531 in / 13.49 mm center holes

Clean the housing, inspect the center tube and replace the cover seal when included or required separately. Seat the element concentrically and check the housing cover for leakage after startup.

Technical information

• part type: oil filter element
• style: cartridge bypass
• product grade: regular / heavy duty
• height: 4.875 in / 123.83 mm
• outside diameter: 4.203 in / 106.76 mm
• top inside diameter: 0.531 in / 13.49 mm
• bottom inside diameter: 0.531 in / 13.49 mm
• reusable: no
• UPC: 009100380029
• sale unit: 1 element
