M18x1.5 spin-on oil filter, 113 mm height, 76 mm outside diameter and anti-drainback valve.

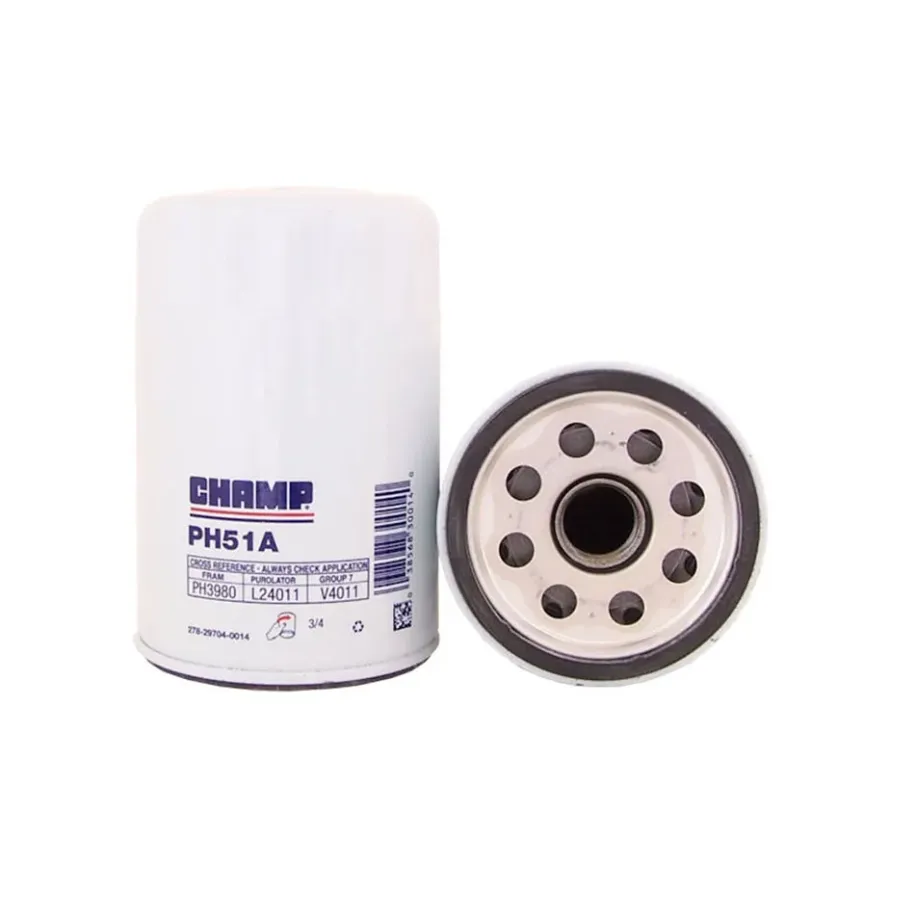

Champ PH51A
PH51A
zł26.00
Tax included
| Delivery within 2-3 business days
M18x1.5 spin-on oil filter, 113 mm height, 76 mm outside diameter and anti-drainback valve.
Champ PH51A is a spin-on oil filter with M18x1.5 thread. It includes an anti-drainback valve and does not include a bypass relief valve, so the filter base requirements must be checked.
Application / fitment
This filter belongs to the PH51A / WIX 51036 / PF51-PF52 family used in selected GM, Buick, Cadillac, Chevrolet, Oldsmobile, Pontiac, Workhorse and selected marine cross-reference applications. Thread, gasket size, canister height and bypass valve requirement are the deciding checks.
- part type: oil filter
- position: engine lubrication system
- selected applications: GM cars and trucks, selected MerCruiser, OMC and Volvo Penta via WIX 51036 / PH51A cross-reference family
- dimensions: 113 mm / 4.45" height, 76 mm / 2.99" outside diameter, M18x1.5 thread
Before purchase, compare filter height, gasket diameter and whether the bypass valve is handled by the filter or the filter mount.
Technical information
- part type: spin-on oil filter
- thread: M18x1.5
- height: 113 mm / 4.45"
- outside diameter: 76 mm / 2.99"
- gasket diameter: WIX 51036 family filters typically use about 70-71 mm OD and 61-62 mm ID; compare with the filter mount before installation
- anti-drainback valve: yes
- bypass relief valve: none
- cross-reference: WIX 51036, AC PF51/PF52, FRAM PH3980, Purolator L24011, K&N SO-2001/HP-2001
- sale unit: 1 piece
