Victor Reinz 71-13830-00

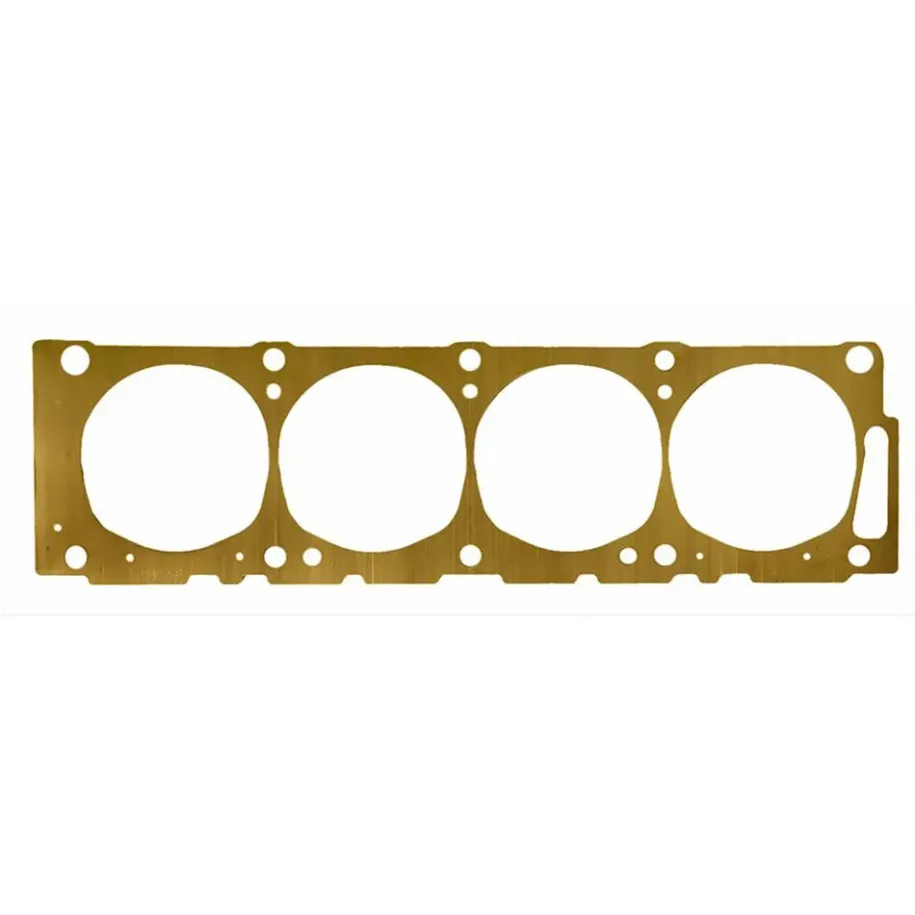

Victor Reinz 71-13830-00 is a copper cylinder head spacer shim for Ford FE engines. It is used in engine-building and machine-shop work where head gasket stack height, compression ratio or previously machined surfaces need to be compensated.

Application / fitment

Designed for selected Ford FE engines, including 332 / 352 / 361 / 390 / 406 / 427, depending on bore size, coolant passage layout and the head gasket being used. Compare the shim with the block, cylinder head and final head gasket before installation.

• Ford FE 332 / 352 / 361 / 390 / 406 / 427
• workshop use as a head spacer shim
• intended to be used with the correct head gasket and properly prepared surfaces

A head spacer shim does not replace proper block and cylinder head inspection. Check piston height, chamber volume, compression ratio and cylinder head torque procedure during assembly.

Technical information

• type: cylinder head spacer shim
• material: copper
• thickness: 0.020” / approx. 0.51 mm
• bolt hole quantity: 10
• engine family: Ford FE
