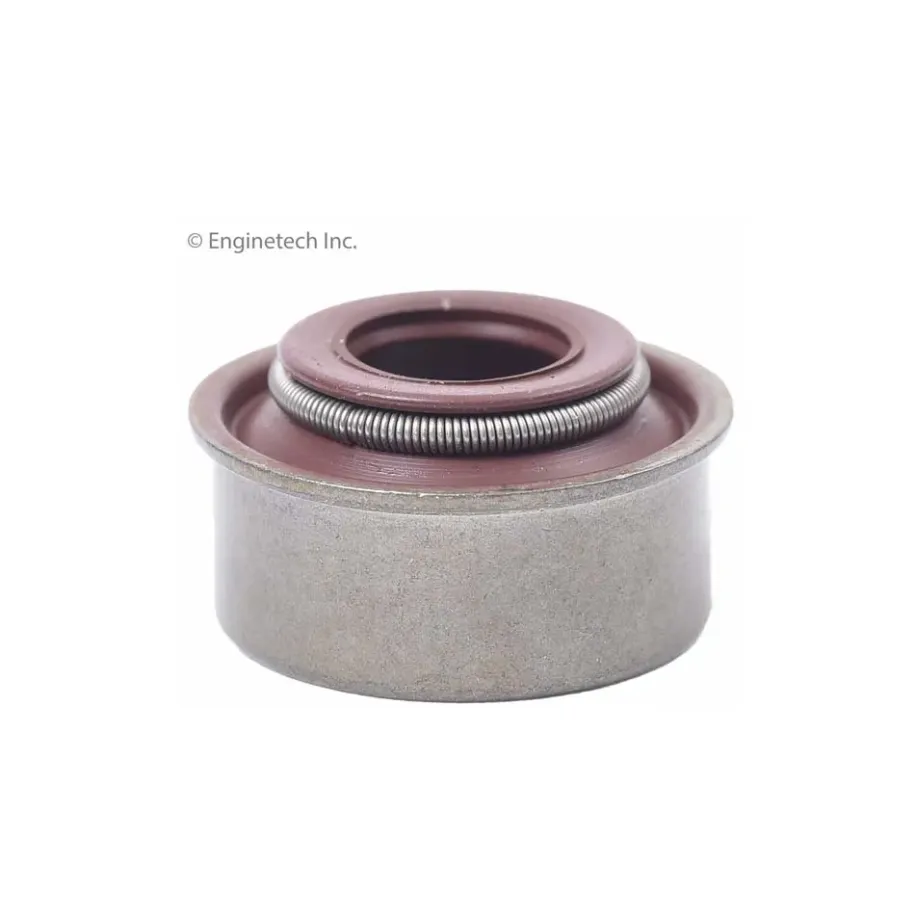

ENGINETECH S9222

Enginetech S9222 is a positive valve stem seal manufactured from Viton elastomer. It presses directly onto the valve guide to meter oil at the valve stem and reduce oil entry into the combustion chamber.

Application / fitment

The seal is used in engines requiring an 8 mm valve stem and a guide prepared for a 0.472 in / 11.99 mm seal body. Fitment must be confirmed dimensionally and by the engine catalog number.

• part type: positive valve stem seal
• position: intake or exhaust valve guide according to the engine catalog
• selected Ford/Mercury/Merkur engine families: 2.8 L, 2.9 L and 4.0 L OHV with 8 mm stems
• selected Chrysler, Dodge, Jeep and Ram engines requiring S9222 or the same dimensions
• selected Mazda and other applications using the same stem and guide diameters
• nominal dimensions: 8 mm stem; 0.472 in / 11.99 mm guide mounting diameter

Measure the valve stem and guide outside diameter and check valve-to-guide clearance before installation. Press the seal on with the correct installer and protect the sealing lip from the valve-lock grooves. Replacing the seal alone cannot correct an excessively worn guide.

Technical information

• part type: positive valve stem seal
• material: Viton
• valve stem diameter: 8 mm / 0.315 in
• guide mounting diameter: 0.472 in / 11.99 mm
• construction: press-on valve-guide seal
• function: meters stem lubrication and limits oil entry into the combustion chamber
• selected multi-piece package number: Enginetech S9222-20
• sale unit: 1 piece
