ACDelco 10409635

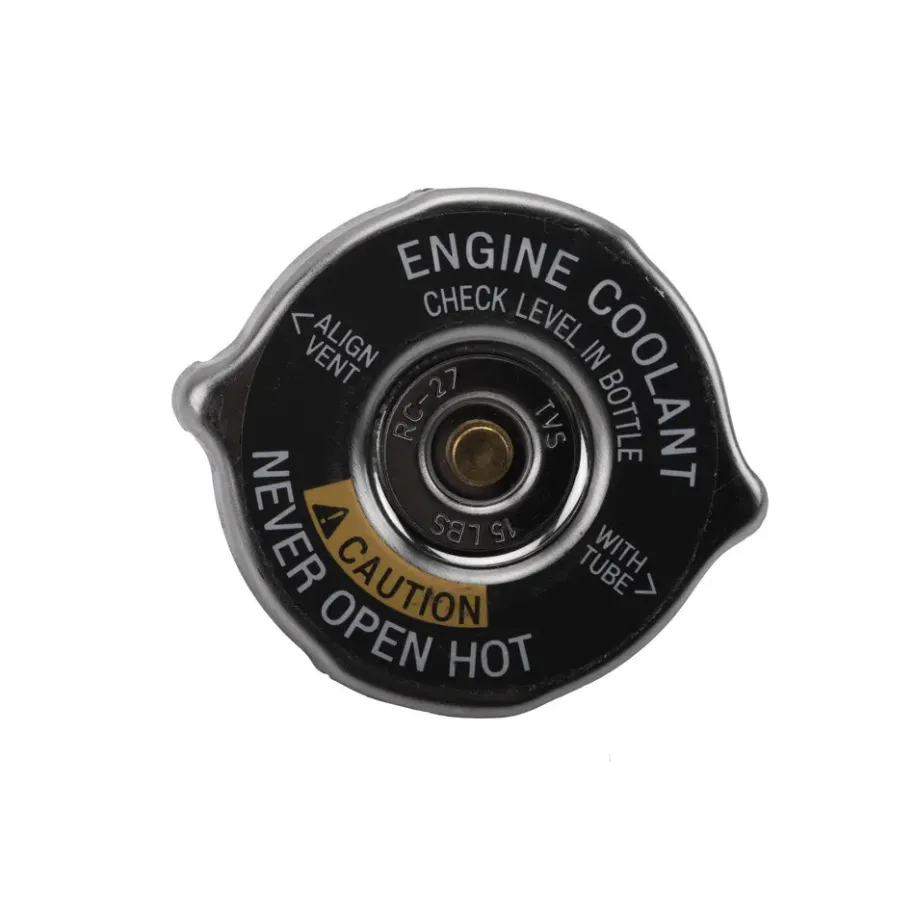

ACDelco RC27 / 10409635 is a 15 psi / approx. 1.03 bar radiator cap for cooling systems with a coolant recovery system. The cap maintains correct cooling-system pressure and affects the coolant boiling point.

Application / fitment

The cap should be selected primarily by operating pressure, cap depth and radiator filler neck dimensions. It fits selected GM applications and other cooling systems with a matching filler neck, and final fitment must be confirmed by filler neck dimensions and required cooling-system pressure.

• Pressure: 15 psi / approx. 1.03 bar
• coolant recovery systems
• selected GM Small Block, Big Block, V6, L4 and other applications with matching filler neck dimensions

Typical automotive applications include selected GM vehicles requiring a 15 psi cap with matching filler neck depth and diameter, including Chevrolet, Buick, Pontiac, Oldsmobile, Cadillac and GMC. Final fitment must be confirmed by filler neck dimensions and required cooling-system pressure.

Before installation, check the radiator filler neck inside and outside diameter, neck height, cap depth and required system pressure. A cap that is too shallow, too deep or rated for the wrong pressure may cause sealing or pressure-control issues.

Technical information

• Part type: radiator cap
• Maximum pressure: 15 psi / approx. 1.03 bar
• Cap depth: 0.96” / approx. 24.30 mm
• Filler neck height: approx. 19.50 mm
• Filler neck inside diameter: approx. 46.10 mm
• Filler neck outside diameter: approx. 56.77 mm
• Coolant recovery system: yes
• Material: stainless steel with plastic cover
