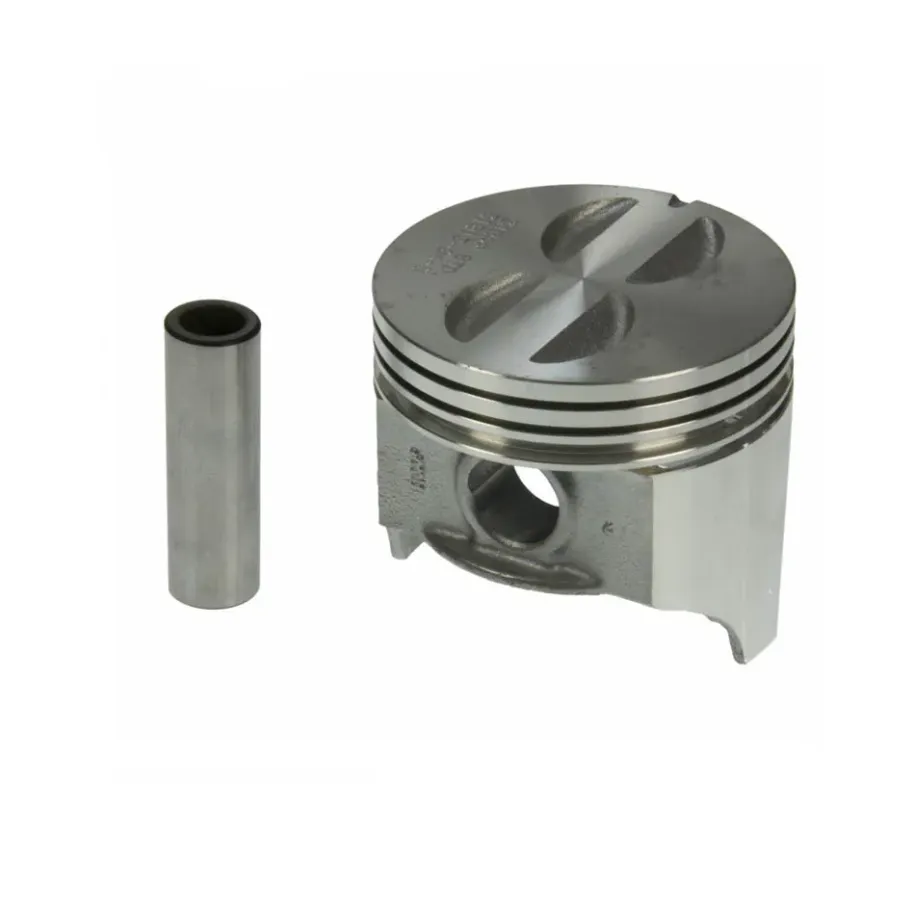

Cast piston set for selected Chevrolet 5.3 / 327 engines, flat top with 4 valve reliefs.
Sealed Power 310AP
310AP
zł2,240.00
Tax included
| Delivery within 2-3 business days
Cast piston set for selected Chevrolet 5.3 / 327 engines, flat top with 4 valve reliefs.
Sealed Power 310AP is a cast piston set for selected Chevrolet 5.3 / 327 engines. The pistons use a flat top with 4 valve reliefs and are intended for engine overhaul or rebuild work with the correct cylinder size.
Application / fitment
310AP is catalogued for selected 1960s Chevrolet 5.3 / 327 V8 applications, including Chevy II, Camaro, Bel Air, Biscayne, Chevelle, Impala and selected Checker vehicles using the 327 engine. The base 310AP number may appear in different size variants, so piston size must be checked on the packaging and against block machining.
- part type: piston set
- selected Chevrolet 5.3 / 327 applications
- piston crown: flat top with 4 valve reliefs
- ring grooves: 5/64", 5/64", 3/16"
- material: cast aluminum
Before installation, verify cylinder bore after honing, piston-to-wall clearance, piston ring end gaps and pin compatibility. Pistons should be assembled with rings and pins according to the engine manufacturer's procedure.
Technical information
- part type: engine pistons
- standard-version bore diameter: 4.0000" / 101.60 mm
- piston pin outside diameter: 0.9275" / 23.56 mm
- compression height: 1.654" / 42.01 mm
- top compression ring thickness: 0.078125" / 1.98 mm
- second compression ring thickness: 0.078125" / 1.98 mm
- oil ring groove: 3/16" / 4.76 mm
- grade type: premium
- sale unit: 1 set
