Cast-iron V8 piston-ring set for a nominal 3.800 in. bore and 5/64 × 3/32 × 3/16 in. ring grooves.
Hastings 571
Hastings 571
zł657.30
Tax included
| Waiting time 3 weeks
Cast-iron V8 piston-ring set for a nominal 3.800 in. bore and 5/64 × 3/32 × 3/16 in. ring grooves.

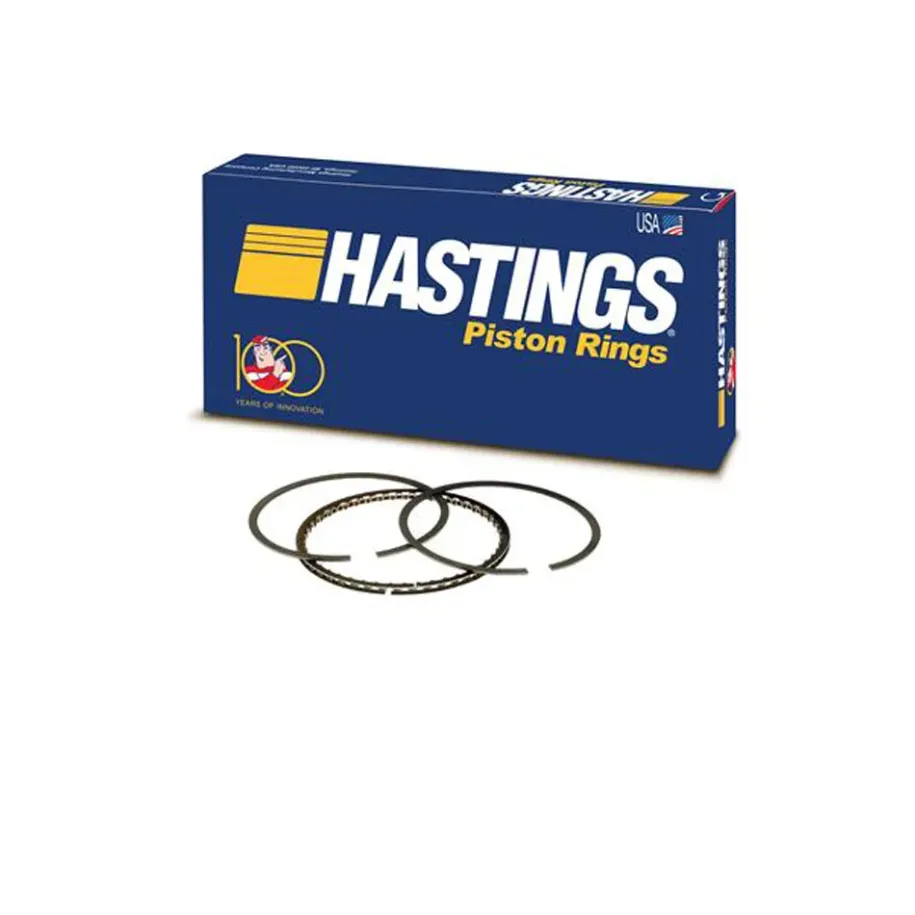

Hastings 571 is a complete cast-iron piston-ring set for eight-cylinder engines with a nominal 3.800 in. / 96.52 mm bore. It includes compression and oil-control rings for eight pistons.
Application / fitment
- selected 1962–1965 Ford 260 CID / 4.3 L V8 applications
- selected 1956–1957 Ford 312 CID / 5.1 L Y-block applications
- selected Ford Falcon, Fairlane, Galaxie and Mercury applications using 5/64, 3/32 and 3/16 in. piston grooves
571 identifies the standard cast-iron family. Do not confuse it with 2M571, which uses a plasma-moly top ring. Oversizes carry an additional suffix, such as 571.030. Verify the package size against the finished cylinder bore.
Technical information
- type: complete piston-ring set for a V8 engine
- cylinders: 8
- nominal bore: 3.800 in. / 96.52 mm
- top-ring thickness: 5/64 in. / 1.98 mm
- second-ring thickness: 3/32 in. / 2.38 mm
- oil-ring thickness: 3/16 in. / 4.76 mm
- 571 version: standard cast-iron rings
- typical available sizes: STD and selected oversizes
- cross-references: Sealed Power 5463X / 252P
- sales unit: 1 complete 8-cylinder set
Measure each cylinder, ring-to-groove clearance and installed end gap before assembly. Install rings in the correct orientation without over-expanding them.
