Brass 1/4" MNPT pipe plug with square head. Thread diameter 0.54" / approx. 13.72 mm, length 0.75" / 19.05 mm. Price is for 1 piece.
Dorman 785-071
785-071
zł69.00
Tax included
| Delivery within 2-3 business days
Brass 1/4" MNPT pipe plug with square head. Thread diameter 0.54" / approx. 13.72 mm, length 0.75" / 19.05 mm. Price is for 1 piece.

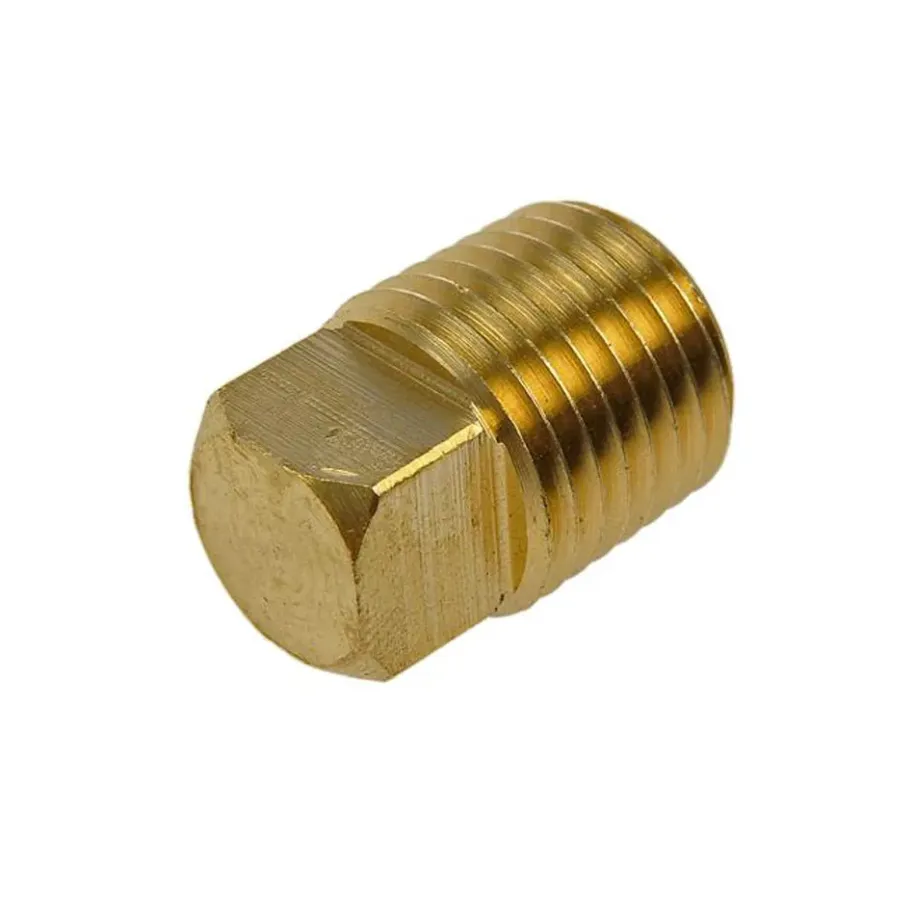

Dorman 785-071 is a brass pipe plug with 1/4" MNPT male thread and a square head. It is used to close threaded passages in an engine block, cylinder head or related hardware where a 1/4" male pipe plug is required.
Application / fitment
Typical catalog use includes selected Ford, Lincoln and Mercury engines, but this part should be verified primarily by thread, diameter and head type. Use it only where the original plug uses 1/4" MNPT thread and a comparable working length.
- part type: pipe plug
- thread size: 1/4" MNPT, 20 TPI
- thread diameter: 0.54" / approx. 13.72 mm
- overall length: 0.75" / 19.05 mm
Clean the threaded bore before installation and confirm there is enough tool access for the square head. Seal the threaded connection according to the service practice required for the specific passage.
Technical information
- type: pipe plug
- material: brass
- head drive: square
- head tool size: 0.35" / 8.89 mm
- depth: 0.40" / 10.16 mm
- outside thread: yes
- sale unit: 1 piece
