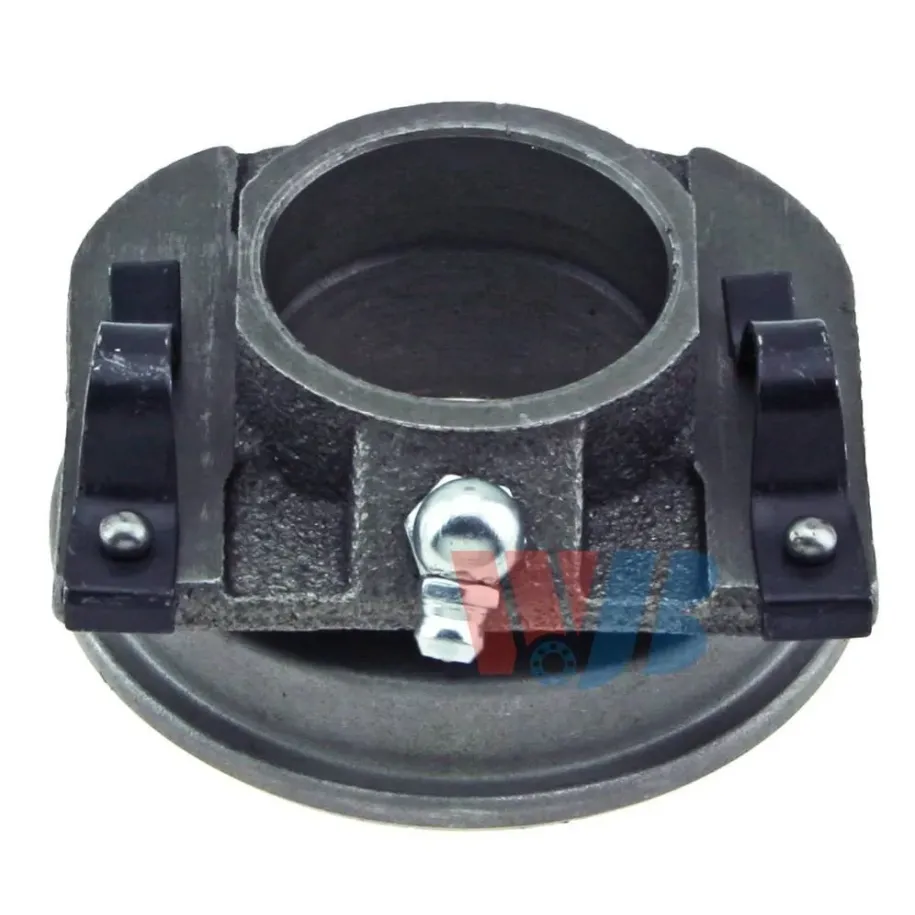

WJB / INMOTION PARTS WR614034

WJB / InMotion Parts WR614034 is a clutch release bearing for selected classic vehicles with manual transmissions. The sealed ball bearing transfers release-fork force to the clutch assembly.

Application / fitment

Confirmed applications include selected Ford, Mercury, Jeep and AMC vehicles from approximately 1958–1982. Examples include Ford Bronco, Econoline, F-100, F-150, F-250, F-350 and Mustang, Mercury Cougar and Montego, and Jeep CJ5 and CJ7. Selection depends on transmission, disc size and clutch configuration, including heavy-duty or three-lever designs.

• part type: clutch release bearing
• selected makes: Ford, Mercury, Jeep and AMC
• typical catalogue range: approximately 1958–1982
• cross references: 614034, N1439 and SKF N1439
• Ford OE references: C6OZ-7548-B, E0TZ-7548-B and E2TZ-7548-A

Compare the inside diameter, outside diameter, assembly height and fork interface before installation. Inspect the guide, fork, pressure plate and pivot. Do not wash or dismantle the sealed bearing. Lubricate only the points specified by the service procedure and keep grease away from the clutch disc.

Technical information

• design: sealed ball-type clutch release bearing
• inside diameter: approximately 1.439 in / 36.6 mm
• outside diameter: approximately 77.8 mm
• assembly width / height: approximately 1.41 in / 35.8 mm
• pressure plate, fork and guide sleeve: not included
• sale unit: 1 bearing
