ATP GS3

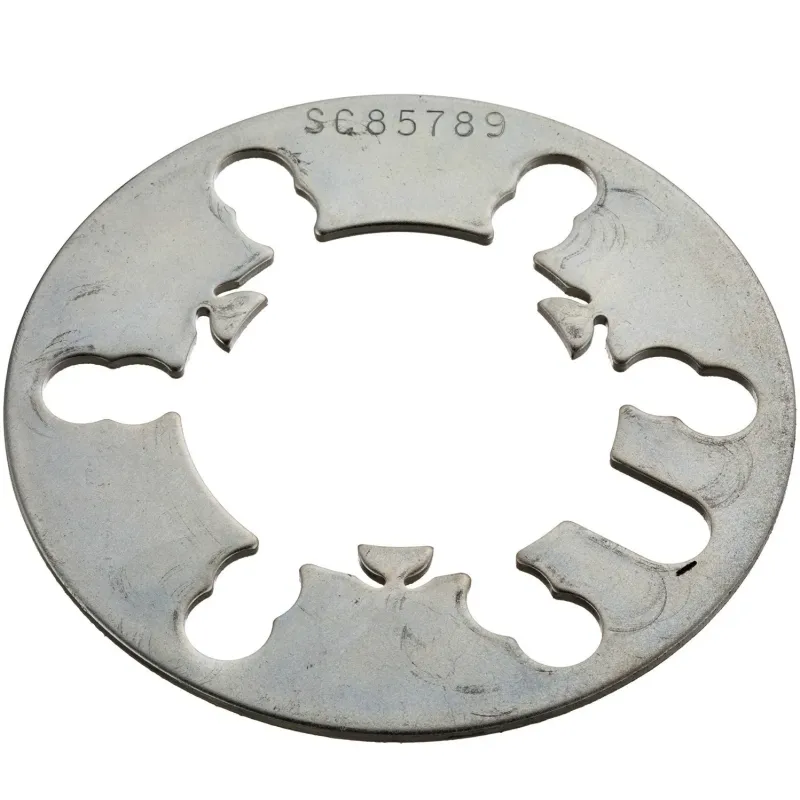

ATP GS3 is a steel flywheel positioning shim with a nominal thickness of 0.089 inch. It installs between the crankshaft flange and flywheel in selected General Motors manual-transmission applications.

Application / fitment

GS3 is cataloged for a broad range of Chevrolet, GMC and selected other GM vehicles. Confirmed examples include certain 1991–2000 GMC C3500HD trucks and Chevrolet/GMC V8 applications. Exact fit depends on crankshaft, flywheel, clutch and mounting-hole pattern.

• part type: flywheel shim
• material: steel
• thickness: 0.089 in. / approximately 2.26 mm
• application: selected GM flywheel installations
• quantity required per vehicle: 1

Do not install the shim without measuring clutch geometry and flywheel position. It may correct position after flywheel machining, but it also changes starter engagement and clutch location. Verify bolt length and tighten all fasteners to the vehicle manufacturer specification.

Technical information

• type: flywheel positioning shim
• ATP number: GS3
• nominal thickness: 0.089 in. / approximately 2.26 mm
• material: steel
• installation location: between crankshaft and flywheel
• not a torque-converter shim for an automatic transmission
• sale unit: 1 piece
