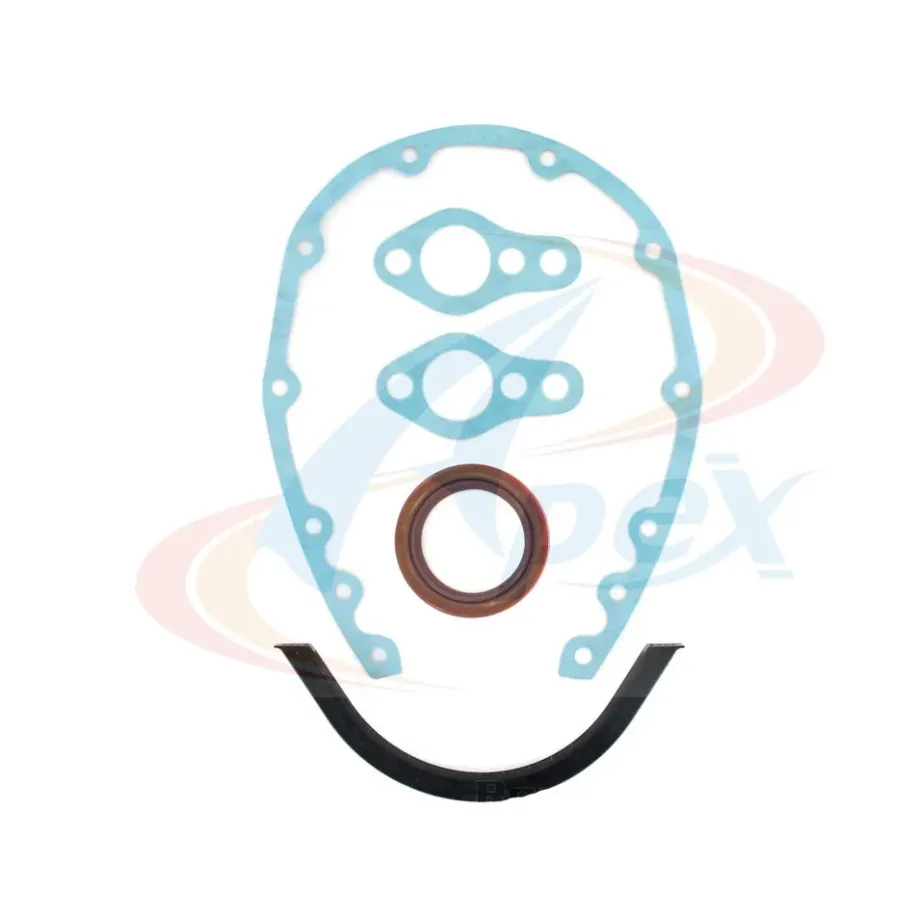

Apex ATC3221
Front timing cover gasket set for selected GM V6 262 / 4.3 L and V8 305 / 5.0 L, 350 / 5.7 L engines.
Apex ATC3221 is a front timing cover gasket set for selected GM engines. The set is used when the timing cover is removed, the front seal is replaced or the front of the engine is reassembled.
Application / fitment
The set is intended for selected GM applications with V6 262 / 4.3 L plus V8 305 / 5.0 L and 350 / 5.7 L engines. Before installation, compare gasket shape with the timing cover used on the specific engine.
- part type: timing cover gasket set
- selected Buick, Chevrolet, GMC, Oldsmobile and Pontiac applications
- selected GM V6 262 / 4.3 L engines
- selected GM V8 305 / 5.0 L and 350 / 5.7 L engines
During installation, check timing cover sealing surfaces, the crankshaft sealing area and crankcase ventilation condition. A worn cover or damper hub groove can cause a new oil leak even with fresh gaskets.
Technical information
- part type: timing cover gasket set
- mounting area: front timing cover
- use: OE replacement / direct fit
- engine family: selected GM V6 and V8
- sale unit: 1 set
