Enginetech HK109

Enginetech HK109 is a camshaft and cylinder-head hardware kit for classic Ford FE 5.9 / 360 and 6.4 / 390 engines. It contains small installation components commonly replaced during engine rebuilding or reassembly.

Application / fitment

Catalog coverage includes selected 1961-1976 Ford FE 360 and 390 engines. Before installation, compare dowel diameters, bolt threads, and the mechanical fuel-pump eccentric design with the original components.

• engine family: Ford FE
• engines: 5.9 / 360 and 6.4 / 390
• selected model years: 1961-1976
• use: camshaft, timing sprocket, cylinder-head, and fuel-pump drive installation

Install all components according to the service procedure for the specific engine. Bolts require the correct torque, and dowels must be seated to the specified depth.

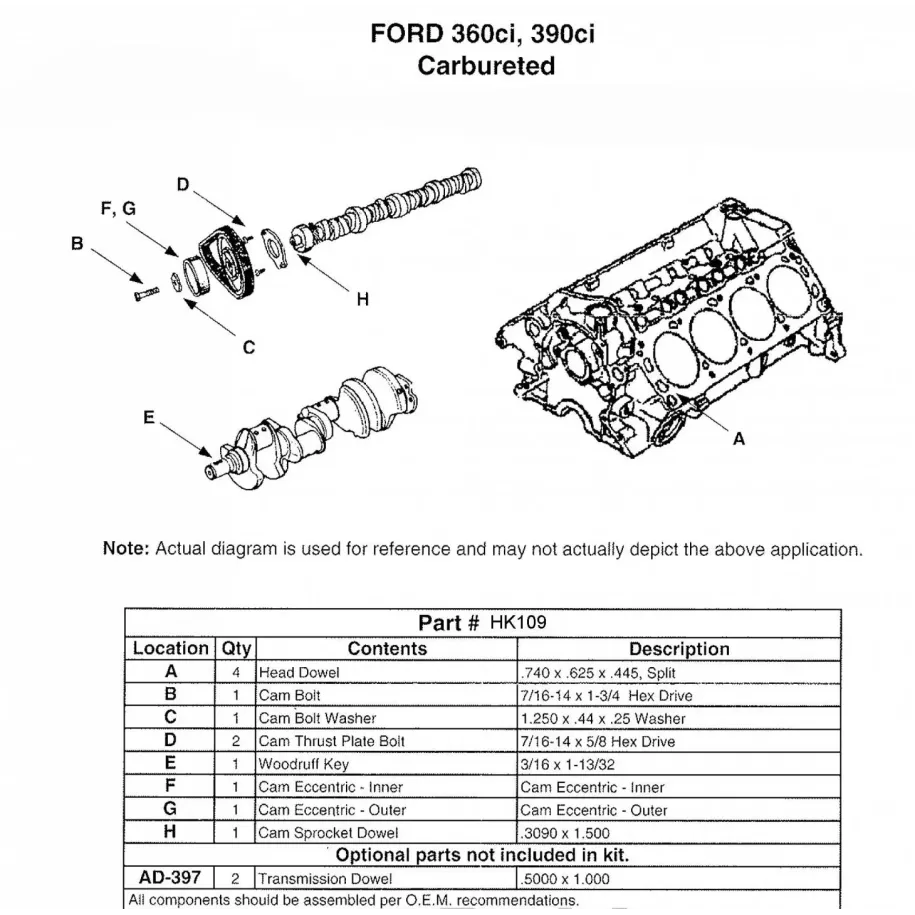

Technical information

• 4 cylinder-head dowels: 0.740" × 0.625" × 0.445"
• 1 camshaft bolt: 7/16-14 × 1-3/4", hex drive
• 1 camshaft bolt washer: 1.250" × 0.44" × 0.25"
• 2 cam thrust plate bolts: 7/16-14 × 5/8", hex drive
• 1 Woodruff key: 3/16" × 1-13/32"
• 1 inner and 1 outer mechanical fuel-pump eccentric
• 1 cam sprocket dowel: 0.3090" × 1.500"
• interchange: Dura-Bond FKF-2
• sale unit: 1 complete kit
