Part Works 4314

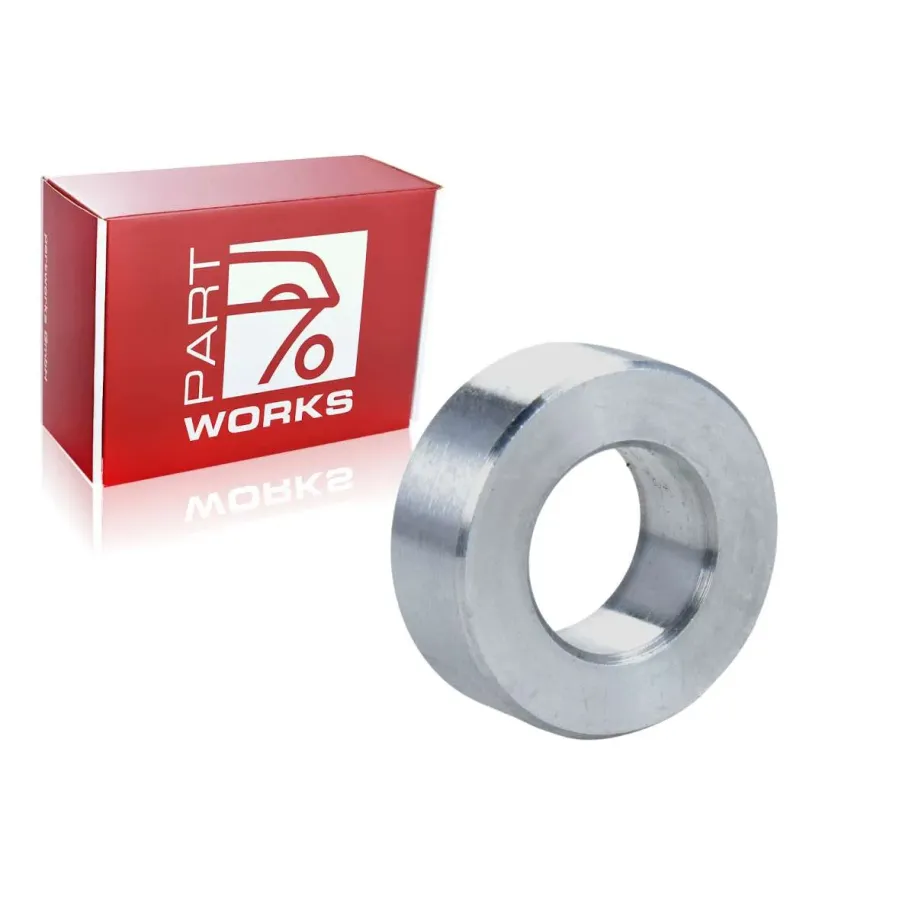

Part Works 4314 is a timing-chain sprocket spacer. It is used with a Porsche timing chain tensioner update kit and positions the chain sprocket relative to the tensioner and chain path, so it is not a complete tensioner but a timing-drive spacer.

Application / fitment

The interchange number 930-105-513-00 is described as a chain sprocket spacer for a chain tensioner update kit for Porsche 911 1973-1989 and 914-6. For 911 SC, Carrera and G-model engines, compatibility must be confirmed with the tensioner update kit, chain sprocket and installation side in the specific engine.

• part type: chain sprocket spacer
• position: timing drive, chain tensioner update kit
• selected applications: Porsche 911 1973-1989, Porsche 911 SC and Carrera G-model, Porsche 914-6
• interchange number: Porsche 930-105-513-00 / 93010551300
• check dimensions: inside diameter, outside diameter, spacer thickness and sprocket offset

Before installation, compare the spacer with the removed part and check chain sprocket alignment after tightening. An incorrect spacer can change the chain running line and accelerate wear of the chain guide or sprocket.

Technical information

• part type: timing-chain sprocket spacer
• system: Porsche timing drive, chain tensioner update kit
• interchange numbers: 930-105-513-00, 93010551300
• material: steel spacer component
• sale unit: 1 piece
