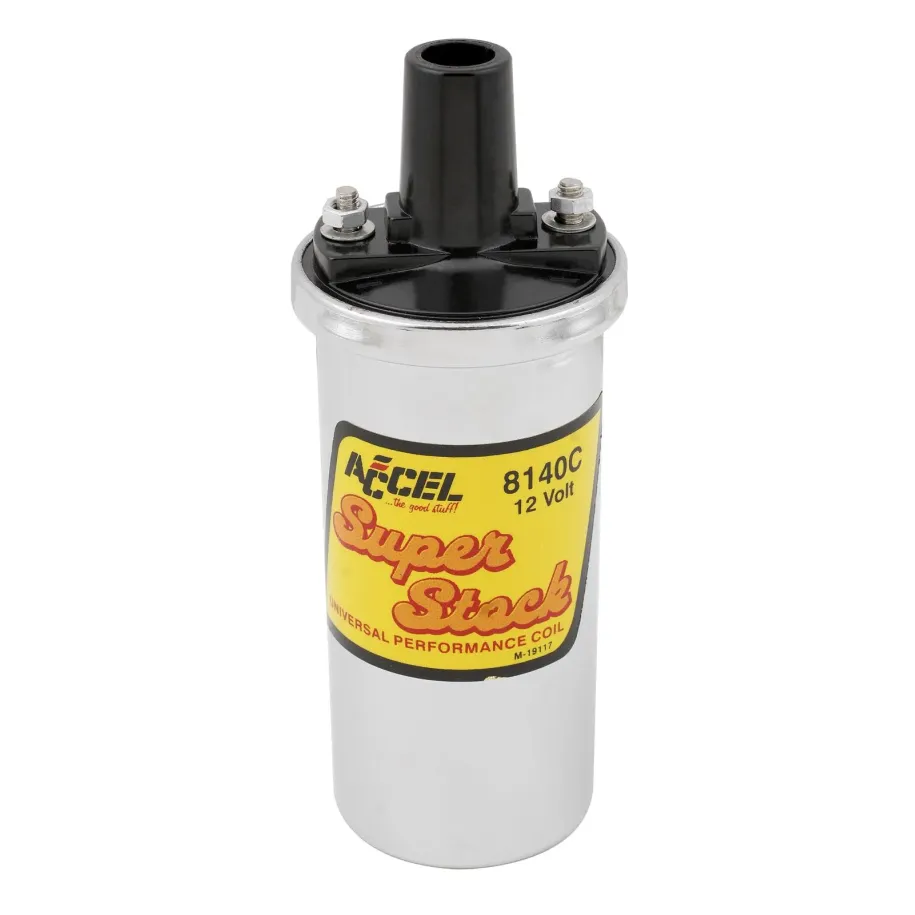

Accel 8140C

ACCEL 8140C SuperStock is a universal chrome oil-filled canister ignition coil rated at up to 42,000 volts. It is designed for classic breaker-point systems and selected breakerless inductive electronic ignitions requiring 1.4-ohm primary resistance.

Application / fitment

The coil is universal rather than vehicle-specific. It can replace a conventional cylindrical coil in domestic and import vehicles after verifying ignition type, system voltage and required primary-circuit resistance.

• classic breaker-point ignition systems
• selected breakerless inductive electronic ignition systems
• classic and modified vehicles requiring a 12 V canister coil
• applications up to approximately 6,500 rpm as rated by the manufacturer

Do not remove the vehicle's ballast resistor or resistance wire without checking the ignition-system instructions. Incorrect primary resistance can overheat the coil, ignition module or breaker points.

Technical information

• type: high-output canister ignition coil
• internal fill: oil
• system voltage: 12 V
• maximum secondary voltage: 42,000 V
• primary resistance: 1.4 ohms
• secondary resistance: 9.2 kΩ
• turns ratio: 94:1
• maximum recommended speed: approximately 6,500 rpm
• housing style: cylindrical canister
• housing material: steel
• finish: chrome
• primary terminals: 2
• UPC: 743047007136
• sales unit: 1 piece

Mount the coil securely away from excessive heat and vibration. Verify terminal polarity and the condition of the high-voltage coil lead before startup.
