Adjustable 12 V thermostat for one single-speed fan, approximately 56–120°C range and 16 A load rating.
Hayden 3653
3653
zł202.72
Tax included
| Delivery within 2-3 business days
Adjustable 12 V thermostat for one single-speed fan, approximately 56–120°C range and 16 A load rating.
Hayden 3653 is a universal adjustable electric radiator-fan thermostat with a radiator-mounted probe. It is designed for one single-speed fan drawing no more than 16 A.
Application
- universal 12 V auxiliary radiator fans
- classic cars and vehicles using a simple add-on electric fan
- one single-speed fan installation
- systems requiring adjustable automatic fan activation
Model 3653 has a lower load rating and simpler design than Hayden 3647. Do not connect it directly to a fan drawing more than 16 A or to an OE fan assembly.
Technical information
- type: adjustable analogue fan thermostat
- system voltage: 12 V
- adjustment range: 132–248°F / approximately 56–120°C
- manufacturer initial setting: approximately 160°F / 71°C
- maximum load: 16 A
- fan configuration: 1 single-speed fan
- probe: 1/4 × 3-inch radiator-mounted probe
- recommended fuse in the instructions: 20 A
- manual override: supported through an optional parallel switch

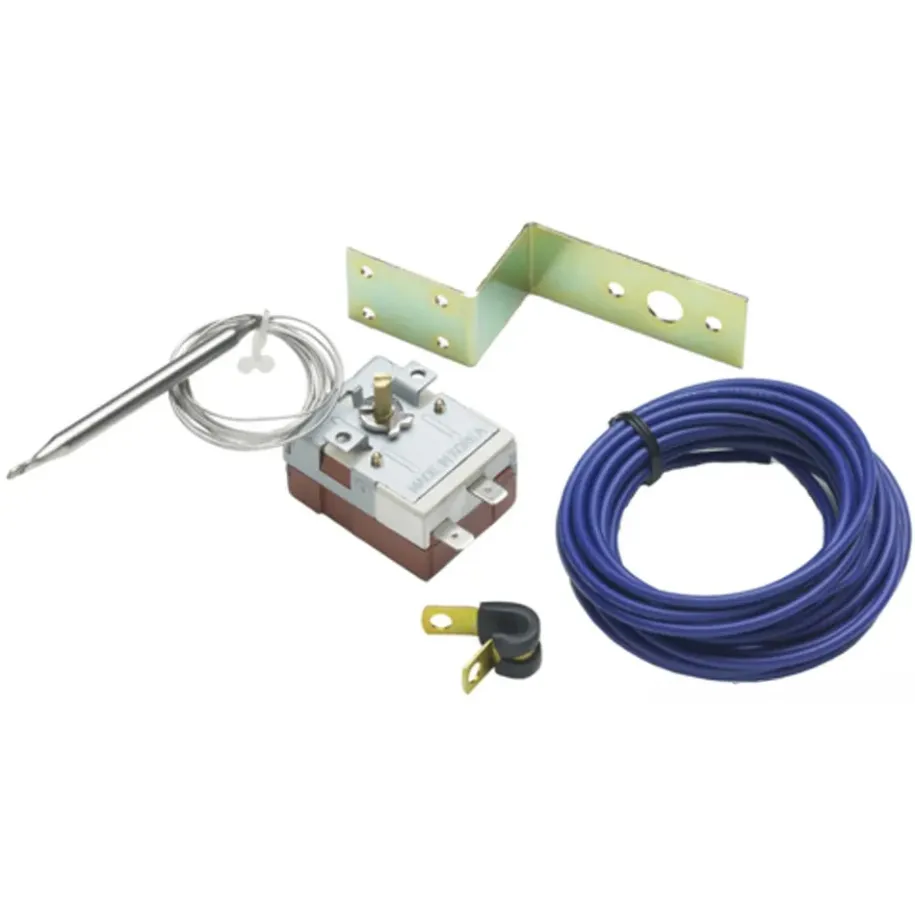

- kit contents: thermostat with probe, bracket, wire, connectors and listed mounting hardware
- sales unit: 1 kit
Install the probe without damaging the radiator. Warm the engine and adjust the activation point while monitoring the gauge or an independent temperature measurement.
