Hayden 3610

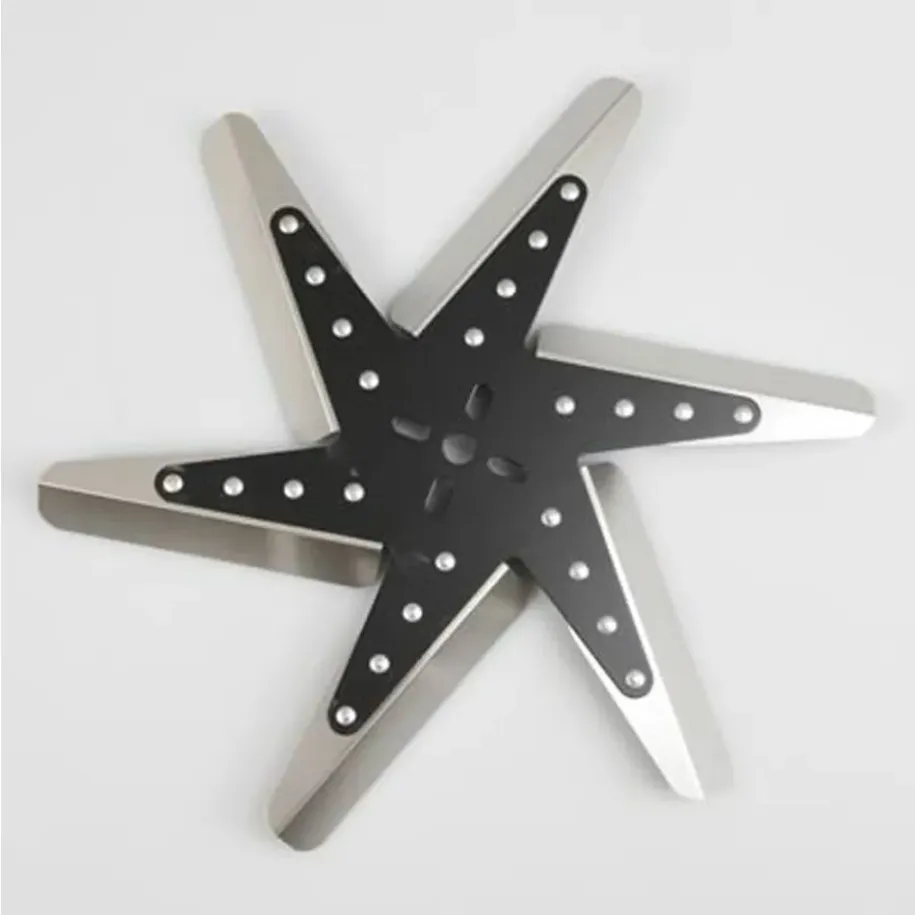

Hayden 3610 is a semi-flex mechanical fan blade with a 17" diameter. Six stainless steel blades help increase airflow through the radiator in mechanical fan-drive cooling systems.

Application / fitment

3610 is a universal-style part and must be compared for diameter, pilot opening, offset and available shroud clearance. Manufacturer catalogue data notes that this fan requires a fan spacer and is not intended for engines larger than 4.1 / 250, high-performance applications or racing use.

• part type: mechanical radiator fan blade
• diameter: 17" / 431.80 mm
• construction: semi-flex
• blade quantity: 6
• blade material: stainless steel

Before installation, check concentricity, clearance from the radiator, belts and shroud, and fan depth inside the shroud. After tightening, run the engine and inspect fan runout at low rpm.

Technical information

• part type: radiator fan blade
• fan diameter: 17" / 431.80 mm
• blade quantity: 6
• blade material: stainless steel
• pilot diameter: 5/8" / 15.88 mm
• fan spacer required
• sale unit: 1 piece
