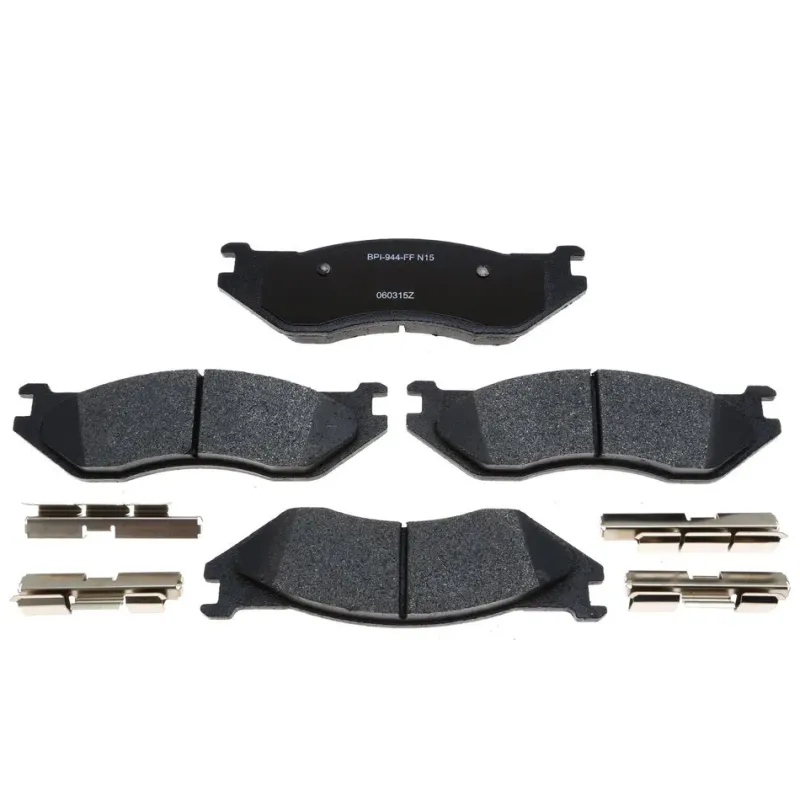

Raybestos MGD966MH

Raybestos MGD966MH is a front semi-metallic disc brake pad set from the R-Line range. The pads use OE-style geometry with multi-layer noise-damping shims plus matched slots and chamfers to reduce noise, vibration and harshness during braking.

Application / fitment

The set is intended for the front axle of selected 2002–2005 Dodge Ram 1500 and 2003–2006 Dodge Durango applications. For 2004–2005 Ram 1500, the catalog application covers standard Laramie, SLT and ST configurations; the 8.3 V10 SRT-10 uses a different brake pad set.

• part type: disc brake pad set
• position: front
• Dodge Ram 1500: 2002–2005
• Dodge Durango: 2003–2006
• engines occurring in confirmed configurations: 3.7 V6, 4.7 V8, 5.7 V8 and 5.9 V8 depending on model year

Before installation, compare pad shape, overall thickness, retaining tabs and caliper type with the removed set. For 2004–2005 Ram 1500, exclude the 8.3 V10 SRT-10 configuration.

Technical information

• part type: disc brake pad set
• product line: Raybestos R-Line
• friction material: metallic / semi-metallic
• FMSI: D966-7774
• pad width: 6.810" / 172.97 mm
• pad height: 2.200" / 55.88 mm
• overall thickness: 0.685" / 17.40 mm
• mounting hardware: included
• OE interchange numbers: 05080556AA, 05080556AC, 05080556AE, 05093796AA, 05134584AA, 05139733AA, 05139733AB, 5080556AA, 5080556AC, 5080556AD, 5080556AE, 5093796AA, 5134584AA, 5139733AA
• selected cross references: PGD966M, SGD966M, EHT966H, SP966TRH, Wagner SX966B, Bosch BC966, Brembo P18026N, PowerStop 16-966
• sale unit: 1 set
