WIX 58894

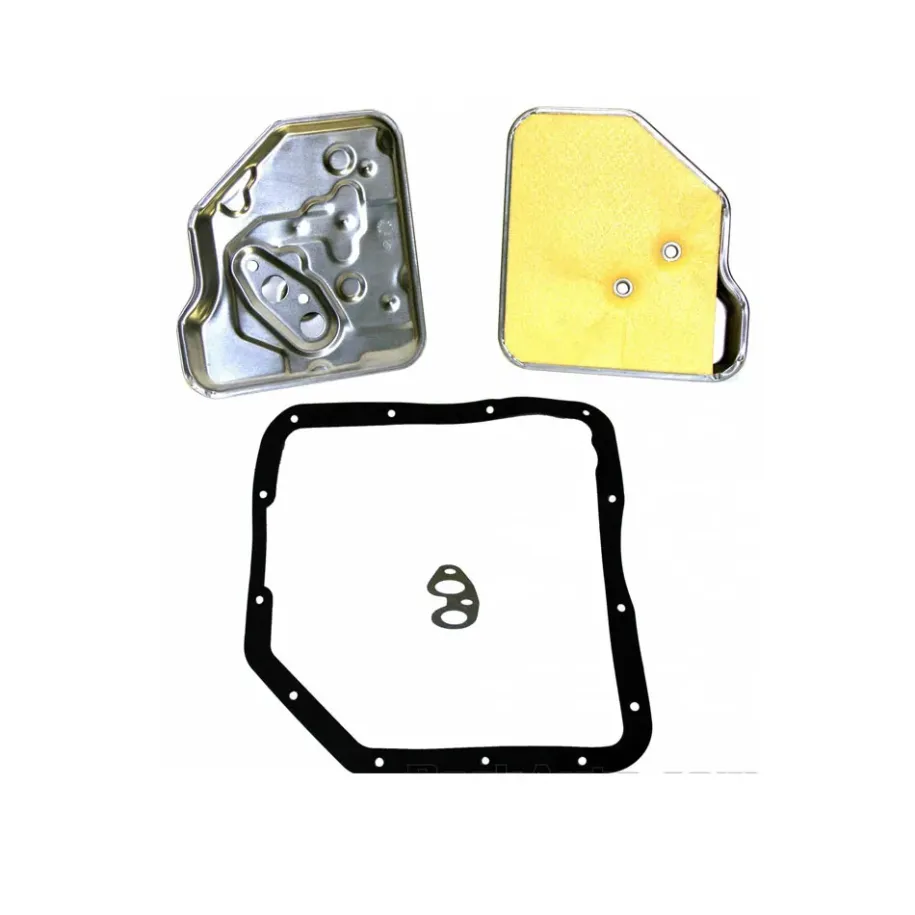

WIX 58894 is an automatic transmission filter kit. The kit is used during ATF service and includes the pan filter, pan gasket and small filter-mounting gasket.

Application / fitment

This kit is used in automatic transmissions with a pan-mounted filter at the ATF pump pickup side. Fitment should be confirmed by 58894 part number, pan shape, gasket bolt pattern and filter attachment to the valve body.

• part type: automatic transmission filter kit
• position: inside the transmission pan, at the ATF pump suction side
• service use: ATF service, pan cleaning, pan-gasket service and filter service
• function: filtration of fluid drawn by the transmission pump

During service, clean the magnets and pan, remove old gasket material, check pan-flange straightness and tighten the pan bolts evenly.

Technical information

• type: automatic transmission pan filter kit
• contents: filter, pan gasket, small filter-mounting gasket
• filter features: metal housing with filter media and ATF flow points
• control dimensions: pan-gasket outline, bolt-hole pattern, filter shape and filter height inside the pan
• sale unit: 1 kit
