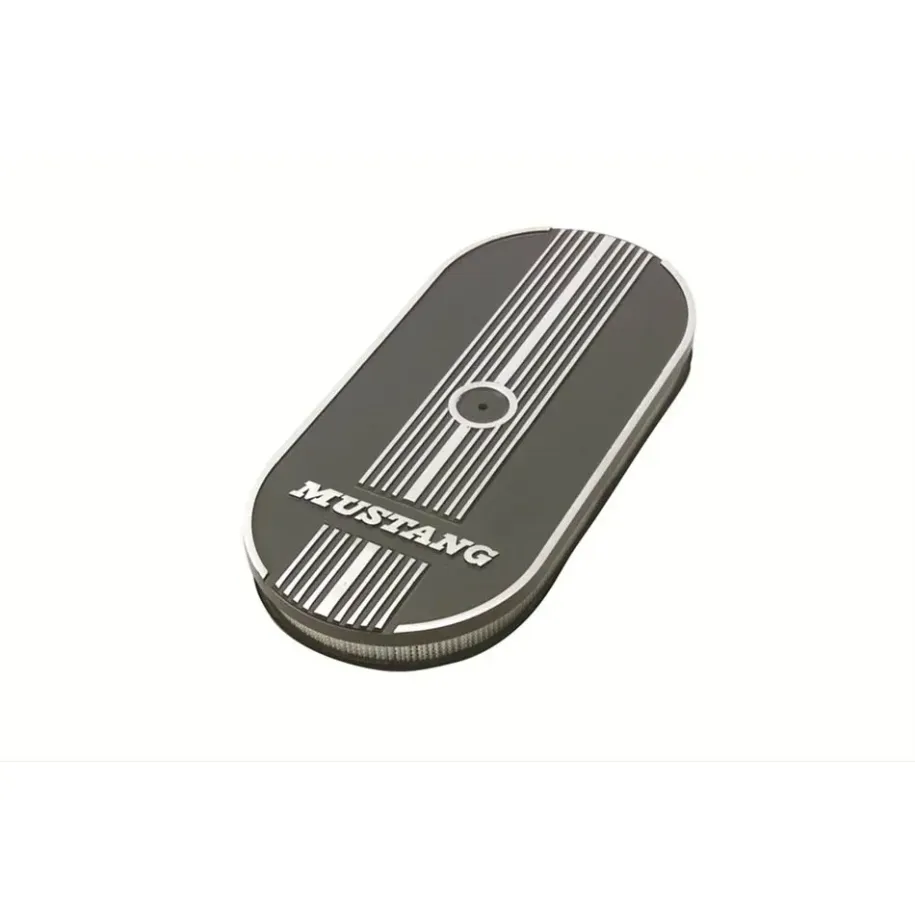

Ford M-9600-K302

Ford Performance M-9600-K302 is an oval air cleaner assembly with Mustang logo. The assembly is intended for single 4-barrel carburetor applications and combines a black satin base, aluminum lid and white paper filter element.

Application / fitment

The assembly is intended for classic Ford applications with a single 4V carburetor. Store export data lists Ford 1965-1973 applications, including 170 / 2.8 L, 200 / 3.3 L, 250 / 4.1 L, 260 / 4.3 L, 289 / 4.7 L, 302 / 5.0 L, 351W / 5.8 L, 390 / 6.4 L, 427 / 7.0 L, 428 / 7.0 L and 429 / 7.0 L engines.

• part type: air cleaner assembly
• single 4V carburetor
• classic Ford 1965-1973 applications
• oval style with Mustang logo

Before installation, check carburetor air horn diameter, hood clearance, intake manifold height and possible interference with throttle linkage, fuel lines and accessories. Carburetor spacers can make total height critical.

Technical information

• part type: air cleaner assembly
• shape: oval
• size: 21 1/16" x 10" / 535 x 254 mm
• base style: raised
• raised distance: 0.250" / 6.35 mm
• filter height: 1.750" / 44.45 mm
• net height from carb flange: 2.250" / 57.15 mm
• top material: aluminum
• base material: stamped steel
• finish: black satin, powdercoated
• filter: white paper
• nut: chrome wing nut included
• threaded rod: 4 5/8" / 117.48 mm, 1/4-20 thread
• sale unit: 1 assembly
