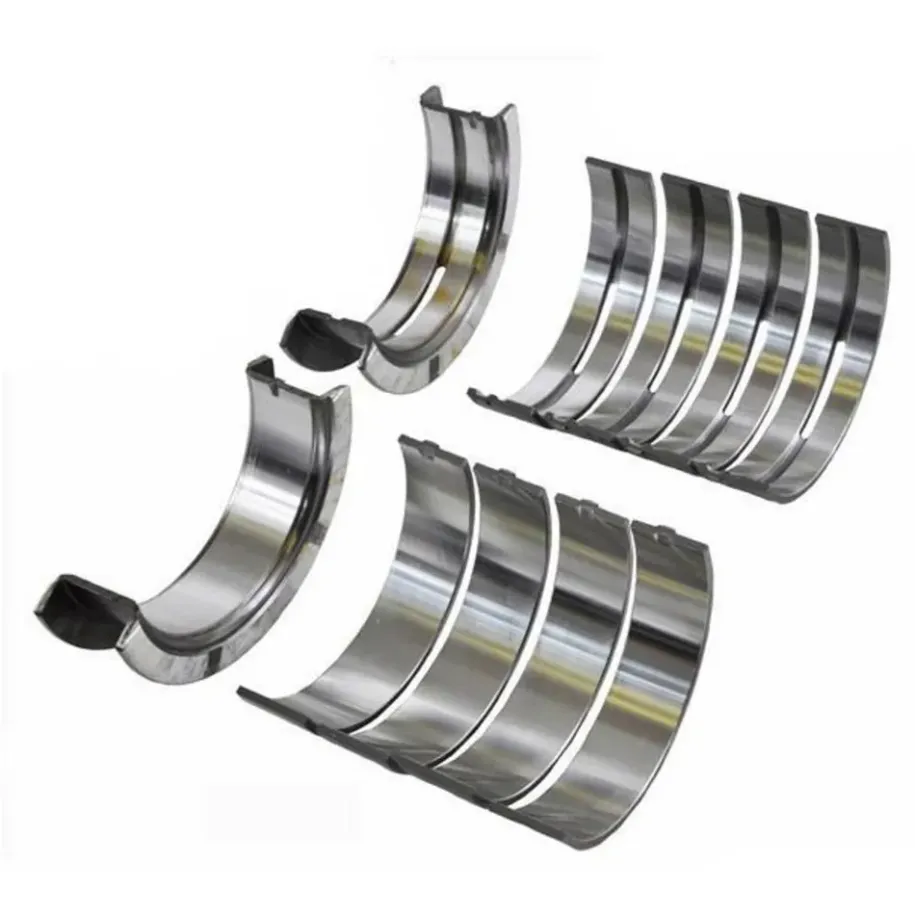

Enginetech BC306J

Enginetech BC306J is a crankshaft main bearing set for selected Ford V8 engines. Main bearings are precision parts and should be verified by BC306J part number, main journal diameter, STD/undersize size and required oil clearance.

Application / fitment

The set is used in selected Ford 351W / 5.8 Windsor engines from approximately 1977–1997 and in selected Ford 351M / 400 applications from approximately 1975–1982 when the part number and bearing dimensions match. Do not rely on the engine family name alone — crankshaft journal size and bearing variant determine fitment.

• Ford 351W / 5.8 Windsor, selected applications approx. 1977–1997
• Ford 351M Modified, selected applications approx. 1975–1982
• Ford 400, selected applications approx. 1977–1982
• selected Ford, Lincoln and Mercury applications with matching crankshaft configuration

Before installation, measure main journals, check housing bore, crankshaft fillet radius, bearing width and bearing clearance. If the crankshaft has been ground, use the correct undersize variant such as .010”, .020” or .030” according to the actual journal size.

Marine application: the BC306J part number is also listed as main bearings for selected marine engines based on the Ford 351W / 5.8 platform from 1977–1997. For this use, the bearings must be selected by the exact part number, main journal diameter, STD/undersize variant and required bearing clearance. Marine fitment depends on the engine base, crankshaft and marinizer configuration, not on the boat model.

Technical information

• Part type: crankshaft main bearings
• Part number: BC306J
• Engine families: selected Ford 351W / 351M / 400
• Application range: approx. 1975–1997 depending on engine and crankshaft
• Verification: main journal, housing bore, STD/undersize, bearing clearance
• Installation check: journal diameter, oil clearance, bearing width, crank radius
