GMB 125-1110AL

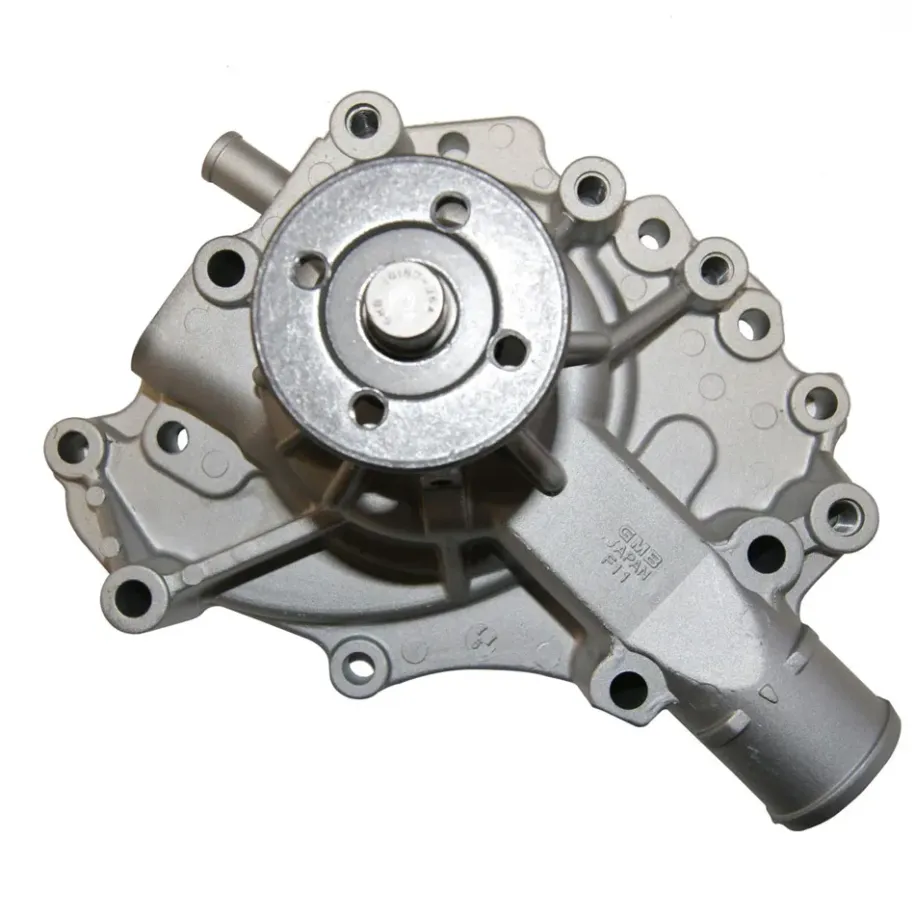

GMB 125-1110AL is an aluminum engine water pump for selected Ford Cleveland / 335-family engines. The pump circulates coolant through the block, heads and radiator, so engine family, inlet layout, hub height and accessory alignment all need to be checked.

Application / fitment

125-1110AL is used in selected Ford, Lincoln and Mercury applications with 5.8 / 351C, 5.8 / 351M and 6.6 / 400 engines, mainly from 1970-1982. Similar engines may use different radiators, pulleys and belt layouts, so the removed pump should be compared before installation.

• part type: engine water pump
• selected Ford 5.8 / 351C, 5.8 / 351M and 6.6 / 400 engines
• aluminum housing
• standard rotation
• pulley not included

Before installation, compare hub height, hub diameter, hose connections, lower inlet side, bolt pattern and pulley offset. After installation, refill coolant, bleed the system and check for leaks and belt alignment with the engine running.

Technical information

• part type: engine water pump
• housing material: aluminum
• hub height: 5.71" / 145.03 mm
• hub diameter: 2.62" / 66.55 mm
• impeller material: metal
• impeller rotation: standard
• includes back housing: no
• pulley included: no
• cross references: GMB 1251110AL, Milodon 16235, NAPA N251110AL
• sale unit: 1 piece
