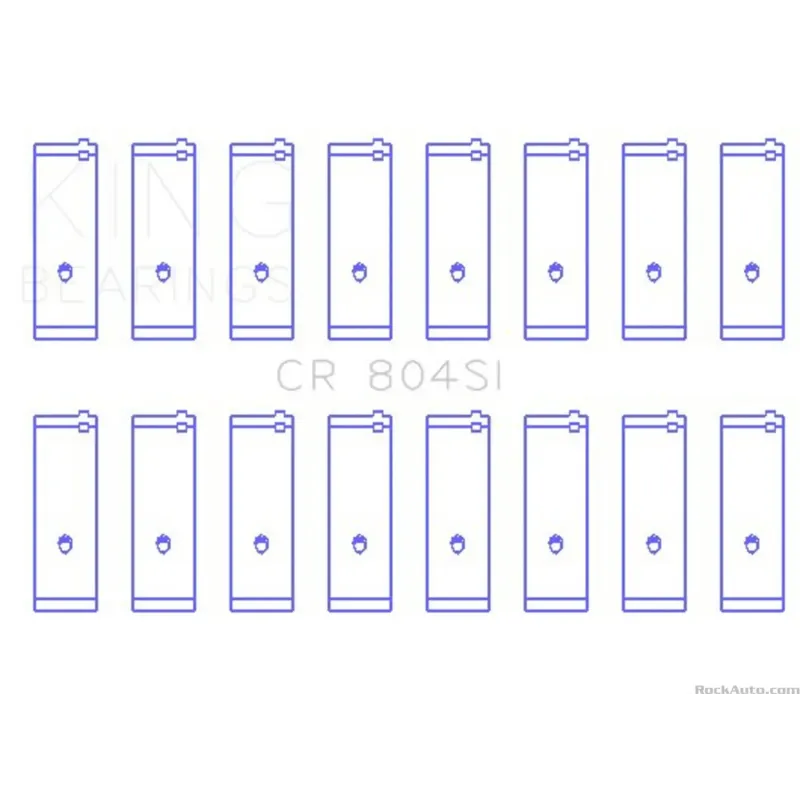

KING ENGINE BEARINGS CR804SI

King Engine Bearings CR804SI is a standard-size connecting rod bearing set for selected Ford Small Block 260, 289 and 302/5.0 V8 engines. The SI-series set contains eight bearing pairs.

Application / fitment

CR804SI without a size suffix denotes standard size. It is catalogued for selected Ford 260, 289 and 302/5.0 Windsor engines with a nominal 2.123-inch crankpin. It must not be used on a reground crankshaft unless the correct undersize marking is confirmed. Measure every crankpin and connecting-rod housing before selection.

• part type: connecting rod bearing set
• selected engines: Ford 260, 289 and 302/5.0 Windsor V8
• size: standard / STD
• set contents: 8 pairs
• cross-references: Clevite CB-634A, CB-634P and Sealed Power 2600CP

Measure crankpins, connecting-rod housing bores and oil clearance for every pair before assembly. Surfaces must be clean and oil passages open. Do not file or modify the bearing locating tangs. Tighten connecting-rod fasteners using the procedure specified for the engine.

Technical information

• series: SI stock replacement
• construction: steel-aluminium bi-metal with silicon content
• crankpin diameter: 53.919–53.939 mm / 2.1228–2.1236 inches
• housing diameter: 56.871–56.891 mm / 2.2390–2.2398 inches
• bearing width: 18.40 mm / 0.724 inch
• wall thickness: approximately 1.461 mm / 0.0575 inch
• EAN: 611500415050
• sale unit: 1 set of 8 pairs
